It is recommended to have the following tools available for assembling the Compact CNC Electronics Enclosure:
-
Allen Key / Hex Wrenches in the following sizes: 2mm, 3mm & 5mm
-
Wire cutters & a wire stripper
-
Crimping tool (JST-XH, Molex-Micro fit and 18-14AWG Fork + Spade terminals)
-
Cross slot / phillips and flat screwdrivers
-
Soldering Iron with an M3 heat insert tip
-
-
-
The following printed parts need preparation:
-

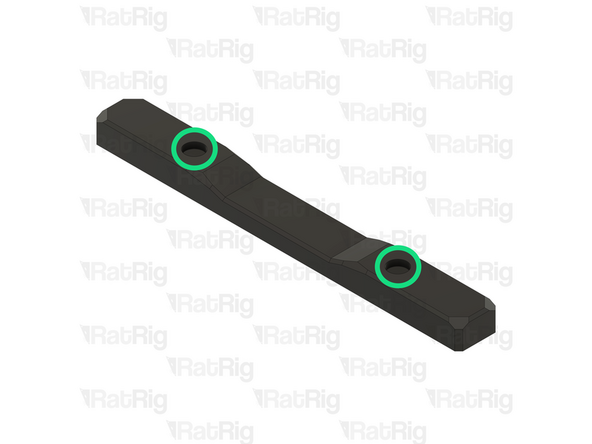

4x compact_cnc_electronics_corner printed part
-
2x compact_cnc_electronics_btt_rodent printed part
-
2x compact_cnc_electronics_psu printed part
-
This part also has sacrificial layers which need to be cleared
-
-
-
These steps show how to install an M3 heat insert into the printed parts
-
M3 heat insert
-
Soldering iron with M3 heat insert tip
-
Align the soldering iron tip with the heat insert
-
Be careful not to burn yourself!
-
-
-
Slowly press the heat insert into the printed part
-
Ensure the heat insert is flush with the printed part, or even a little below the surface
-
Avoid having a heat insert higher than the printed part, this can cause assembly issues
-
Remove the soldering iron
-
