XY Idler Assembly

Written By: Paweł Kucmus (and one other contributor)
  • Comments: 45
  • Favorites: 0
  • Completions: 50

Steps

4

Sections

1

Flags

3

In Progress

In Progress

This guide is currently being written. Reload periodically to see the latest changes.

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

Private

Private

This guide will not appear in search results and can only be viewed by team members!

Quiz

0

  1. Thread the M6x12mm screws through the idler plates. Four screws per plate Attach the 3030 M6 T-nut to the screws. Don't tighten yet Attach the 3030 M6 T-nut to the screws. Don't tighten yet

    • Thread the M6x12mm screws through the idler plates. Four screws per plate

    • Attach the 3030 M6 T-nut to the screws. Don't tighten yet

  2. Looking from the back of the printer we will now focus on:

    • Looking from the back of the printer we will now focus on:

    • The right XY idler

    • The left XY idler

  3. Attach the right XY Idler base to the frame. Fasten the nuts firmly Repeat for the left side Repeat for the left side

    • Attach the right XY Idler base to the frame. Fasten the nuts firmly

    • Repeat for the left side

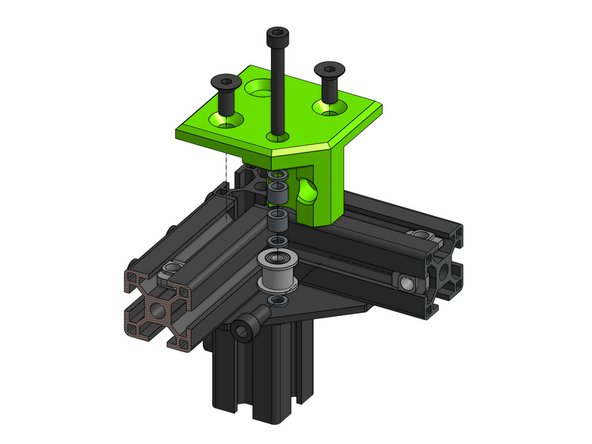

  4. Thread the bearing stack on the DN912 M5x40mm screw that goes through the xy_idler_right part Thread the bearing stack on the DN912 M5x40mm screw that goes through the xy_idler_right part

    • Thread the bearing stack on the DN912 M5x40mm screw that goes through the xy_idler_right part
