Introduction

BEFORE STARTING:

Before beginning this guide, you must prepare all the necessary wires for the assembly. Below is a list of the required wires. The following nomenclature will be used: (Wire Length)_(AWG)_(Wire Color)_(A-End Connector)_(B-End Connector)_(ID number).

Use a small piece of tape to label each wire to ensure a smooth assembly process.

  • WIRING LIST

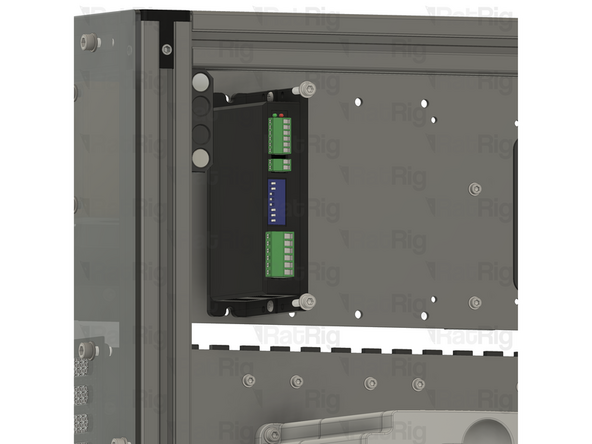

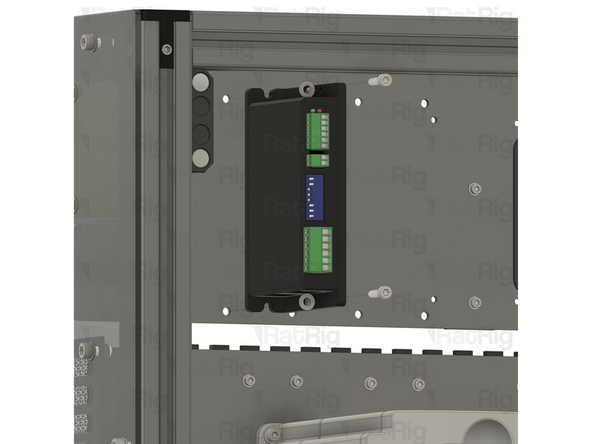

  1. 4x Stepper driver - OMC DM542T

    • 4x Stepper driver - OMC DM542T

    • 8x M4x16 cap head screw

    • 8x M4 washer

    • 8x M4 locking hex nut

  4. 1x CNCDrive AXBB-E CNC controller

    • 1x CNCDrive AXBB-E CNC controller

    • 4x Spacer - Nylon - 4.2x6.3x10mm

    • 4x M4x25 cap head screw

    • 4x M4 locking hex nut

  5. 1x CNCDrive AXBB-E CNC controller 4x Spacer - Nylon - 4.2x6.3x10mm 4x M4x25 cap head screw

    • 1x CNCDrive AXBB-E CNC controller

    • 4x Spacer - Nylon - 4.2x6.3x10mm

    • 4x M4x25 cap head screw

  6. 4x M4x25 cap head screw 4x M5 locking hex nut

    • 4x M4x25 cap head screw

    • 4x M5 locking hex nut

  7. 5x M3x6 cap head screw

    • 5x M3x6 cap head screw

    • 5x M3 washer

    • 1x Meanwell RS-15-5 5V PSU

    • 1x Meanwell RSP-75-24 24V PSU

  8. It is recommended to wire the power supply before installing it in the electronics enclosure. Please connect the following wires:

    • It is recommended to wire the power supply before installing it in the electronics enclosure. Please connect the following wires:

    • XXmm - 18AWG BROWN (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG BLUE (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG YELLOW/GREEN (A-Fork, B-Ferrule) (XX)

    • XXmm - 16AWG BLACK (A-Fork, B-Ferrule) (XX)

    • XXmm - 16AWG RED (A-Fork, B-Ferrule) (XX)

    • Connect all the wires above to the power supply, using the fork connectors on each wire

    • After insertion, attempt to pull the wire to verify that it is securely attached

  9. Install the component using the designated holes 2x M3x6 cap head screw 2x M3 washer

    • Install the component using the designated holes

    • 2x M3x6 cap head screw

    • 2x M3 washer

  11. It is recommended to wire the power supply before installing it in the electronics enclosure. Please connect the following wires:

    • It is recommended to wire the power supply before installing it in the electronics enclosure. Please connect the following wires:

    • XXmm - 16AWG RED (A-Fork, B-Ferrule) (XX)

    • XXmm - 16AWG BLACK (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG YELLOW/GREEN (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG BLUE (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG BROWN (A-Fork, B-Ferrule) (XX)

    • Connect all the wires above to the power supply, using the fork connectors on each wire

    • After insertion, attempt to pull the wire to verify that it is securely attached

  12. Install the component using the designated holes 3x M3x6 cap head screw 3x M3 washer

    • Install the component using the designated holes

    • 3x M3x6 cap head screw

    • 3x M3 washer

  14. 2x Meanwell RSP-320-48 48V PSU

    • 2x Meanwell RSP-320-48 48V PSU

    • 4x M4x8 cap head screw

    • 4x M4 washer

  15. It is recommended to wire the power supply before installing it in the electronics enclosure. Please connect the following wires:

    • It is recommended to wire the power supply before installing it in the electronics enclosure. Please connect the following wires:

    • XXmm - 16AWG RED (A-Fork, B-Ferrule) (XX)

    • XXmm - 16AWG BLACK (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG YELLOW/GREEN (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG BLUE (A-Fork, B-Ferrule) (XX)

    • XXmm - 18AWG BROWN (A-Fork, B-Ferrule) (XX)

    • Connect all the wires above to the power supply, using the fork connectors on each wire

    • After insertion, attempt to pull the wire to verify that it is securely attached

  16. Install the component using the designated holes 4x M4x8 cap head screw 4x M4 washer

    • Install the component using the designated holes

    • 4x M4x8 cap head screw

    • 4x M4 washer
