V-Hive Enclosure - Prusa MK3s Bear Kit

Written By: Miguel Cruz (and one other contributor)

Comments: 0
Favorites: 0

Steps

Step 1 Mount the rails to the frame

Mounting Rails
4x 90 Degree Corner Bracket Assembly
Make sure to place the 90 degree corner bracket assemblies accordingly to the distances bellow:
150 mm
200 mm
The measurements are the same for the other rail.

Step 2 Mount the Prusa MK3s

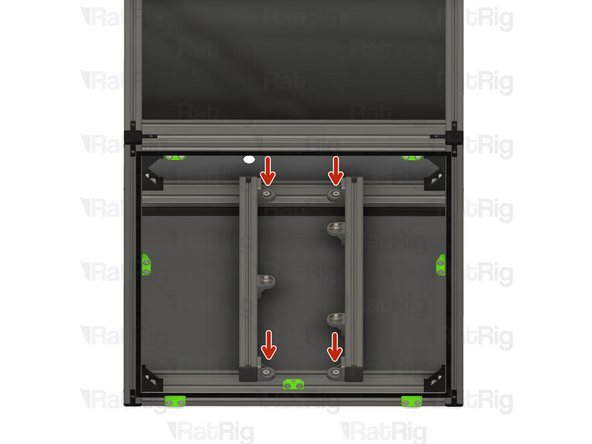

Once all measurements are correct with Step 1 proceed to tighten the M6x12 screws to the frame.

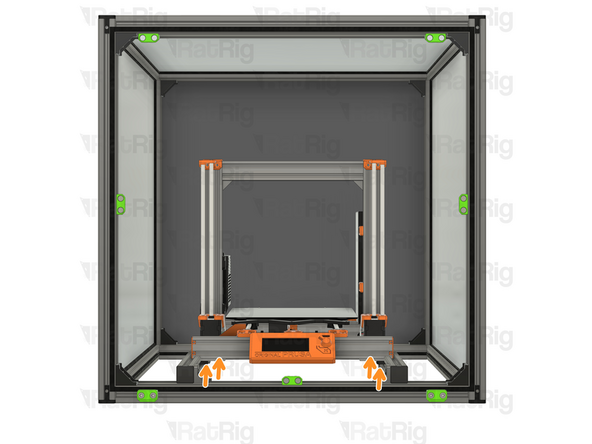

Tighten the screws to the printer frame to ensure a stiff connection.

Once all measurements are correct with Step 1 proceed to tighten the M6x12 screws to the frame.
Tighten the screws to the printer frame to ensure a stiff connection.
