Pending Edits to 11. Accessories
Note: Accepting or denying any edit implicitly applies to all earlier pending edits to the same step or introduction.
Step edited: [Step created]
Edited by Simon Davie (27.2k)
(You don’t have enough reputation to patrol this edit.)

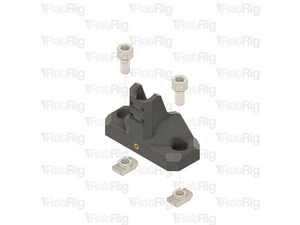

| + | [title] Assemble the umbilical frame mount |
|---|---|
| + | [* 2] Prepared umbilical frame mount printed part |
| + | [* 3] Set Screw M3x5mm |
| + | [* 4] Loosely thread the M3x5 Set Screw into the marked heat insert. Do not fully tighten it as it will be tightened later in the guide |
| + | [* 5] 2x M6x12 Cap Head Screw |
| + | [* 6] T-Nut - Drop In Type for 30 Series - M6 |
| + | [* 10] Insert an M6x12 Cap Head Screw into ***both*** of the marked holes in the printed part and then loosely thread a T-Nut onto ***each***. Do not tighten the T-Nuts at this point |
Old (position 1)
New (position 1)
Old (position 2)
New (position 2)
Old (position 3)
New (position 3)
Step edited: [Step created]
Edited by Simon Davie (27.2k)
(You don’t have enough reputation to patrol this edit.)
| + | [title] Prepare the umbilical frame mount parts |
|---|---|
| + | [* 2] 1x Prepared vc4_umbilical_frame printed part from ***[guide|303|the Preparations guide|stepid=3420|new_window=true]*** |
| + | [* 3] 2x M6x12 Cap Head Screw (***SKU: HW1836SC***) |
| + | [* 4] 2x T-Nut - Drop In Type for 30 Series - M6 (***SKU: HW1361NC***) |
| + | [* 5] 1x Set Screw M3x5mm (***SKU: HW3499SC***) |
Old (position 1)
New (position 1)
Step edited: [Step created]
Edited by Simon Davie (27.2k)
(You don’t have enough reputation to patrol this edit.)

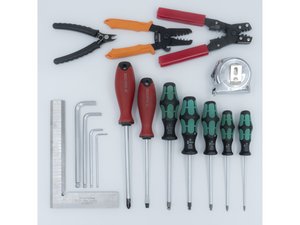

| + | [title] Tools for this section of the guide |
|---|---|
| + | [* 10] The following tools are ***required*** for this section of the guide: |
| + | [* 2] Allen key / hex wrenches in the following sizes: 1.5mm, 2.5mm & 5mm |
| + | [* 9] Avoid using ***ball end*** hex wrenches where possible as they are more prone to damaging the heads of smaller screws |
| + | [* 3] A Spanner / wrench in the following size: 10mm |
| + | [* 4] A pair of strong wire cutters |
| + | [* 5] A sharp knife / blade |
| + | [* 10] The following are ***recommended*** for this guide: |
| + | [* 6] A tape measure |
Old (position 1)
New (position 1)
Introduction edited
Edited by Simon Davie (27.2k)
(You don’t have enough reputation to patrol this edit.)
| Imageid |
