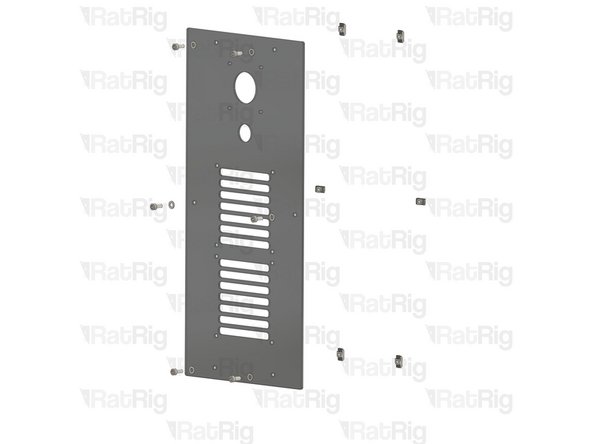

  1. Install the component using the designated holes. 2x M4x8 Cap Head Screw + M4 Washer Power Supply Weho - 350Watt 24V

    • Install the component using the designated holes.

    • 2x M4x8 Cap Head Screw + M4 Washer

    • Power Supply Weho - 350Watt 24V

    • Install the power supply as illustrated, securing it by screwing the M4 screw into the threaded holes on the side of the power supply body.

  2. Install the component using the designated holes. 4x Hex Locking Nut - M3 4x Nylon Spacer - 3.2x6x16mm

    • Install the component using the designated holes.

    • 4x Hex Locking Nut - M3

    • 4x Nylon Spacer - 3.2x6x16mm

    • BigTreeTech & Rat Rig - Rodent CNC Controller TMC2160

    • 4x M3x25 Cap Head Screw

    • Insert the M3x25 cap head screws through the rodent and nylon spacers, then through the designated holes on the plate. Finally, secure them by fastening to the M3 hex locking nuts on the back.

  3. Install the component using the designated holes. 4x Hex Locking Nut - M4 CNC Electronics Contactor

    • Install the component using the designated holes.

    • 4x Hex Locking Nut - M4

    • CNC Electronics Contactor

    • 4x M4x16 Cap Head Screw + M4 washer

    • Insert the M4x16 cap head screws with M4 washers into the contactor mounting holes, then through the plate. Finally, secure them by fastening to the M4 hex locking nuts on the back.

  4. Install the component using the designated holes. 4x Hex Locking Nut - M4 VFD

    • Install the component using the designated holes.

    • 4x Hex Locking Nut - M4

    • VFD

    • 4x M4x16 Cap Head Screw + M4 washer

    • Insert the M4x16 cap head screws with M4 washers into the VFD mounting holes, then through the plate. Finally, secure them by fastening to the M4 hex locking nuts on the back.
