  1. Carefully line up the 2 carriages before the final tightening. Cap Head Screw M6x25mm
    • Carefully line up the 2 carriages before the final tightening.

    • Cap Head Screw M6x25mm

    • Washer M6

    • Hex Locking Nut M6

  2. Repeat this step for 4 Angle Corners. Button Head Screw M5x8mm
    • Repeat this step for 4 Angle Corners.

    • Button Head Screw M5x8mm

    • Angle Corner

    • Drop-in T-Nut M5

    • Do not tighten the T-Nuts. Screw them in just enough so they don't fall.

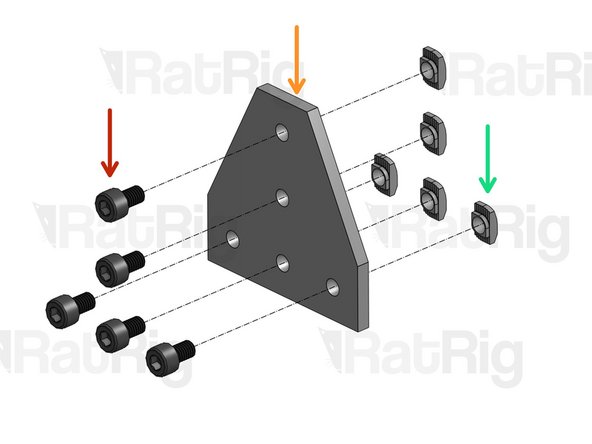

  3. While most KillerBee versions include 1 T-Joining Plate, the 1515 includes 2. Repeat this step twice in that case. Cap Head Screw M5x8mm
    • While most KillerBee versions include 1 T-Joining Plate, the 1515 includes 2. Repeat this step twice in that case.

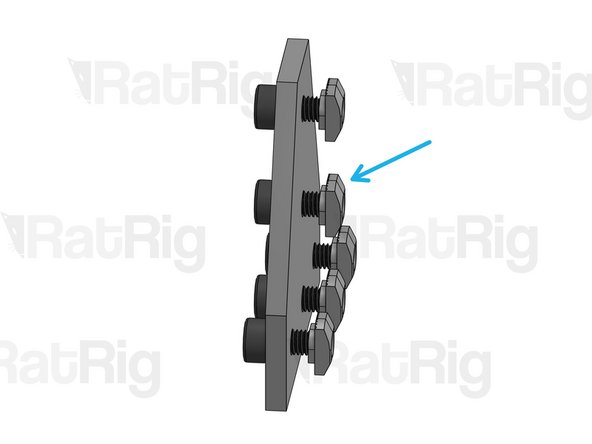

    • Cap Head Screw M5x8mm

    • T-Joining Plate

    • Drop-in T-Nut M5

    • Do not tighten the T-Nuts. Screw them in just enough so they don't fall.

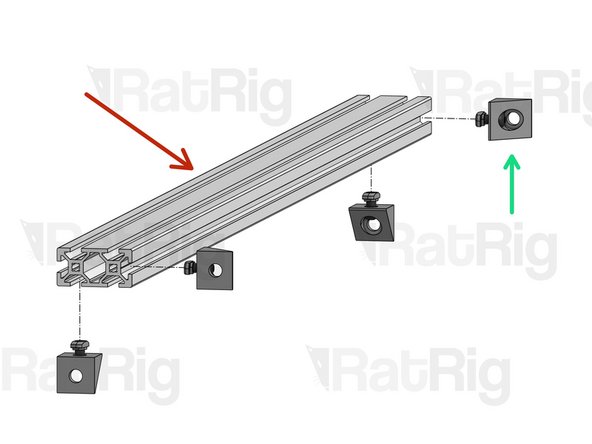

  4. X 2040 Profile (it has the same length as the X Axis C-Beam) Angle Corners Set up in previous step 2.
    • X 2040 Profile (it has the same length as the X Axis C-Beam)

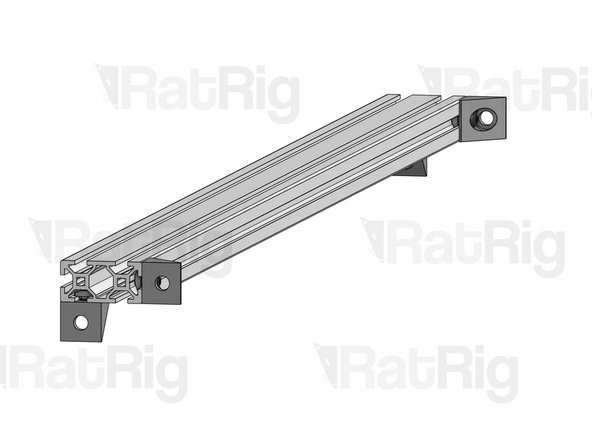

    • Angle Corners Set up in previous step 2.

    • Carefully align the Angle corners so they are perfectly flush with the ends of the profile. Press both the profile and the Angle corner against a flat surface, to prevent the Angle Corner from rotating as you tighten it.

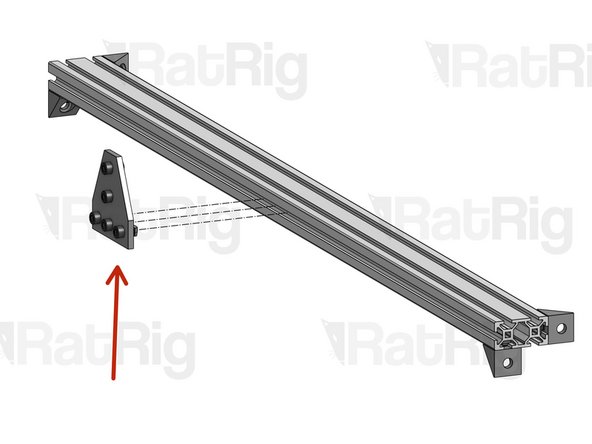

  5. T-Joining Plate, set up on step 3. Mount it right at the middle of the profile (if you have a KillerBee 1515, mount one T-Joining Plate at about 1/3 of the length and the other one at about 2/3). Carefully align the bottom of the T-Joining Plate so it's perfectly flush with the end of the profile.
    • T-Joining Plate, set up on step 3. Mount it right at the middle of the profile (if you have a KillerBee 1515, mount one T-Joining Plate at about 1/3 of the length and the other one at about 2/3).

    • Carefully align the bottom of the T-Joining Plate so it's perfectly flush with the end of the profile.

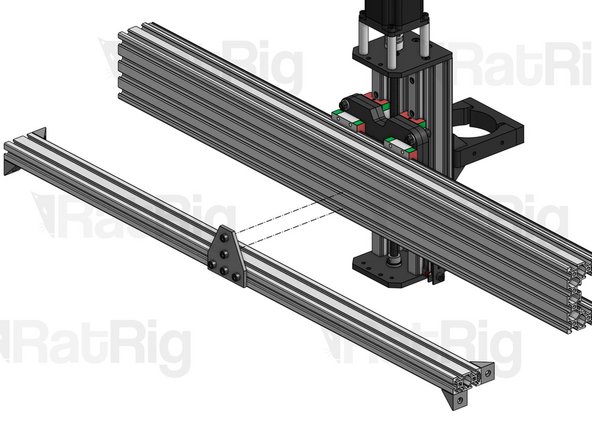

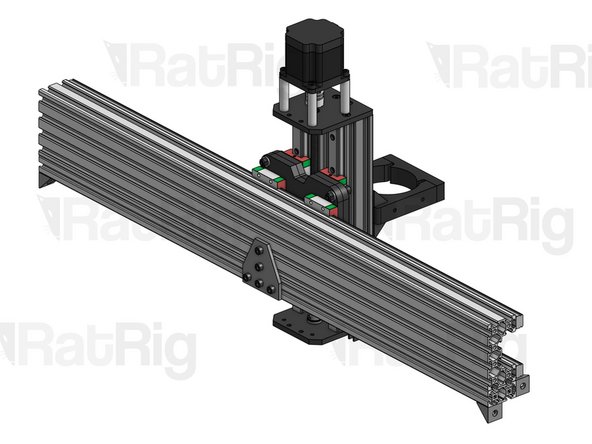

  6. Carefully align the ends of the 2040 profile with the ends of the C-Beam profile, before tightening the 2 upper screws on the T-Joining Plate. Carefully align the ends of the 2040 profile with the ends of the C-Beam profile, before tightening the 2 upper screws on the T-Joining Plate.
    • Carefully align the ends of the 2040 profile with the ends of the C-Beam profile, before tightening the 2 upper screws on the T-Joining Plate.

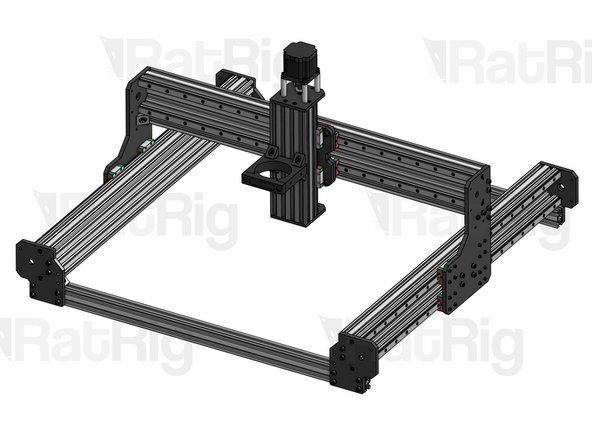

  7. Move on to the Y Axis assembly.
