05. Rat Rig Toolhead V1.0 BETA2

Remove the M3x25 Cap Head Screw

Remove the Hex Nut - M3

Remove the M3 Nylon Locking Hex Nut

Remove the M3x35 Cap Head Screw

Remove the 40mm_fan_duct assembly as shown

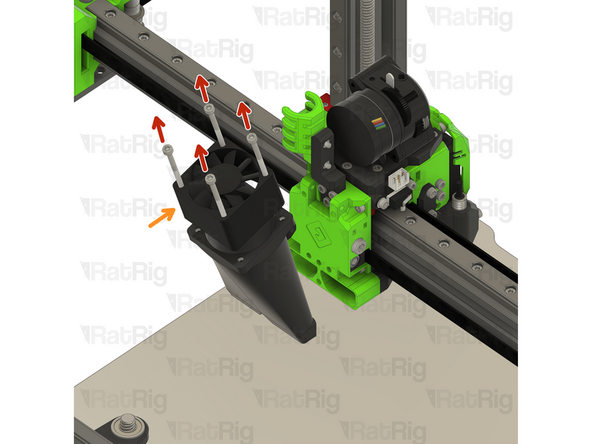

Remove the four M3x35 Cap Head Screws

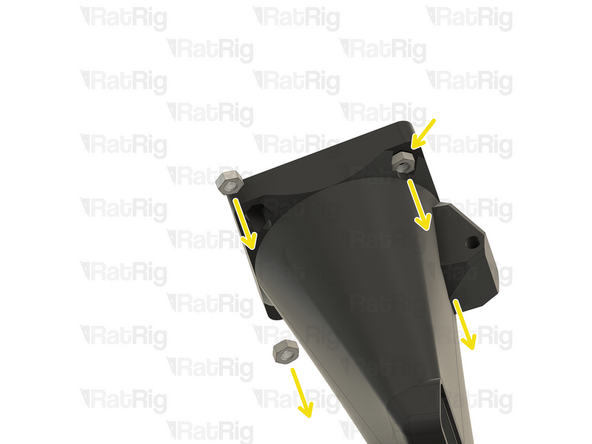

Remove the 4028 Part Cooling Fan from the printed part, it will be re-used on the Rat Rig Toolhead V1.0

Remove the four Hex Nuts - M3

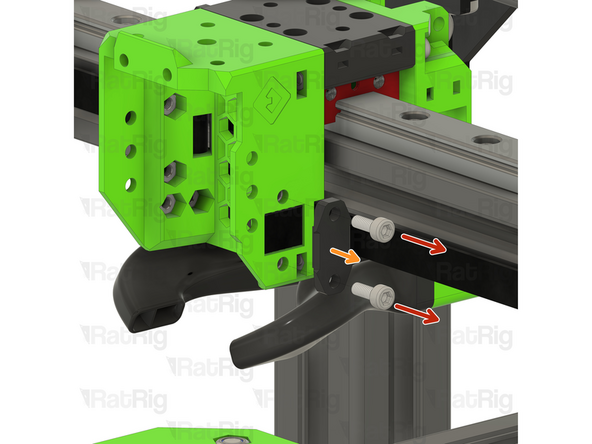

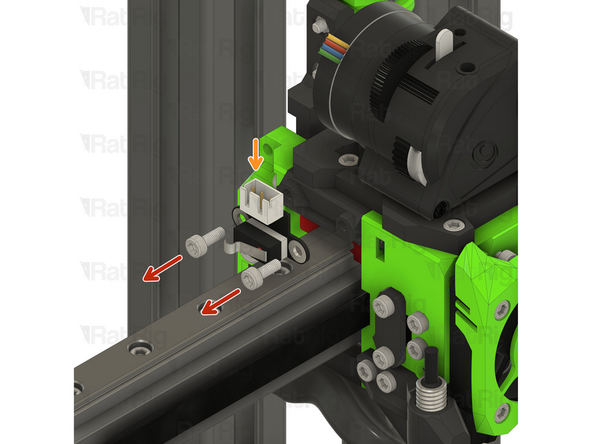

Remove the two M3x8 Cap Head Screws

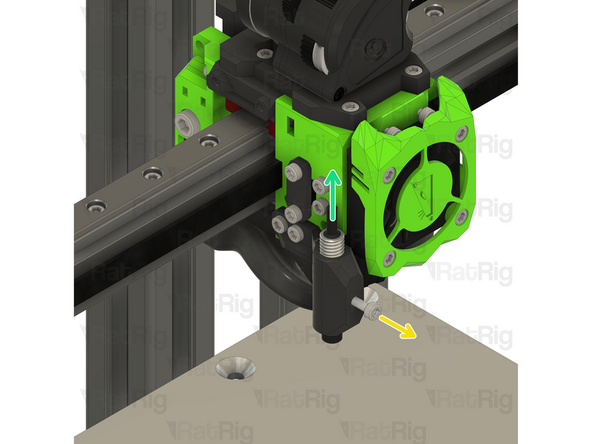

Disconnect the Endstop Module and set it aside, it will be re-used on the Rat Rig Toolhead V1.0

Loosen the M3x8 Cap Head Screw

Remove the Z-probe from the printed part, it will be re-used on the Rat Rig Toolhead V1.0

Remove the three M3x8 Cap Head Screws

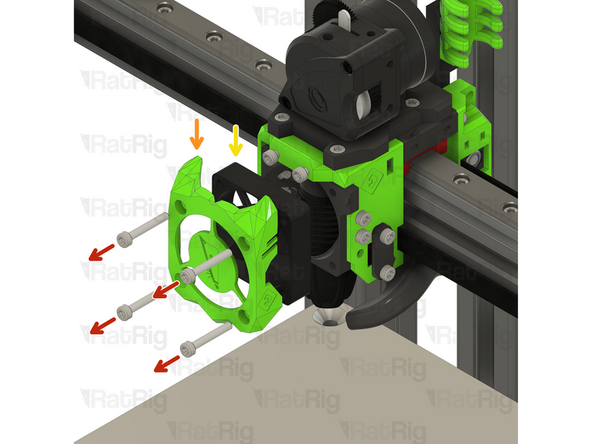

Remove the four M3x20 Cap Head Screws

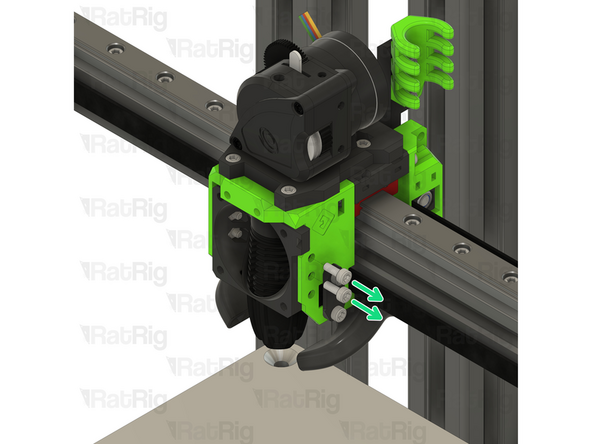

Remove the ratrig_eva3_shroud Printed Part

Remove the 4010 Axial Fan from the assembly, it will be re-used on the Rat Rig Toolhead V1.0

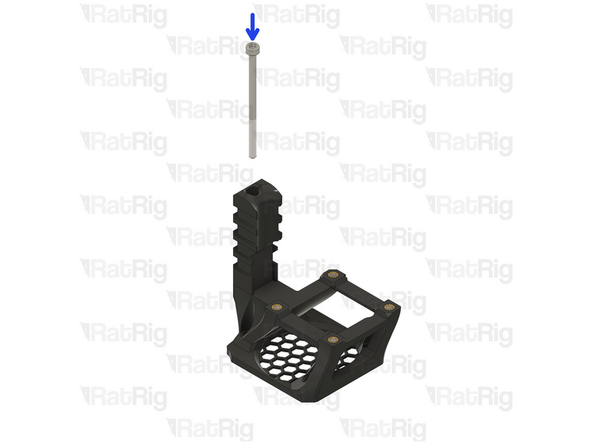

Remove the four M3x8 Cap Head Screws

Remove the four M3x8 Cap Head Screws

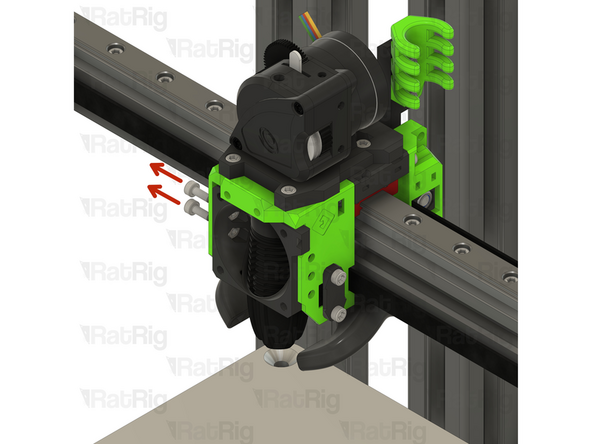

Gently push the hotend assembly down and away from the toolhead-

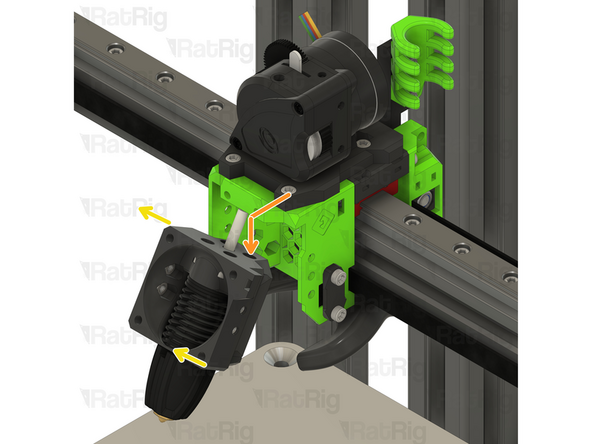

Rotate the hot end assembly into position as shown

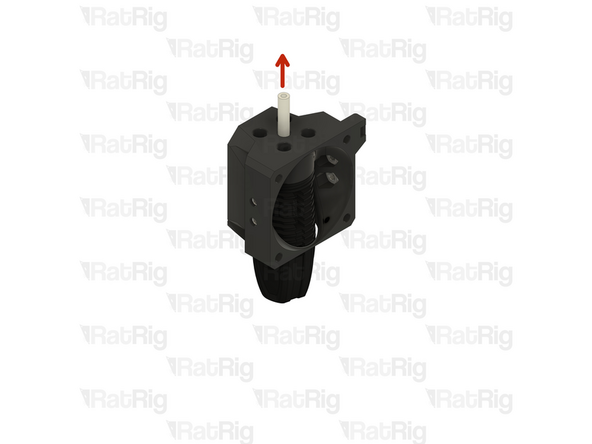

Remove the PTFE line

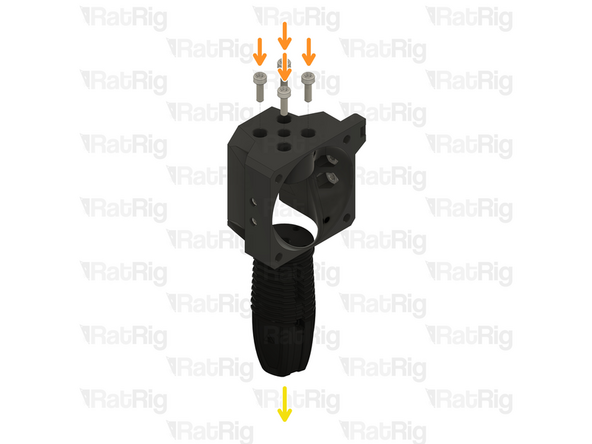

Remove the four M2.5x8 Cap Head Screws

Remove the Rapido hotend from the printed part, it will be re-used on the Rat Rig Toolhead V1.0

Tip: Insert the four M2.5x8 Cap Head Screws back in the Rapido hotend mounting points to avoid losing them.

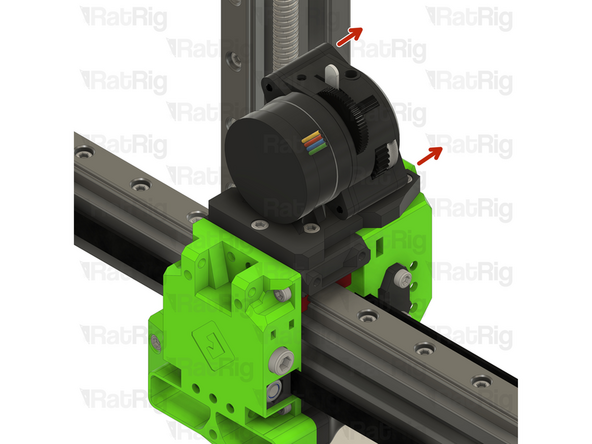

Remove the two M3x25 screws on the face of the LGX Lite which secure the motor in place

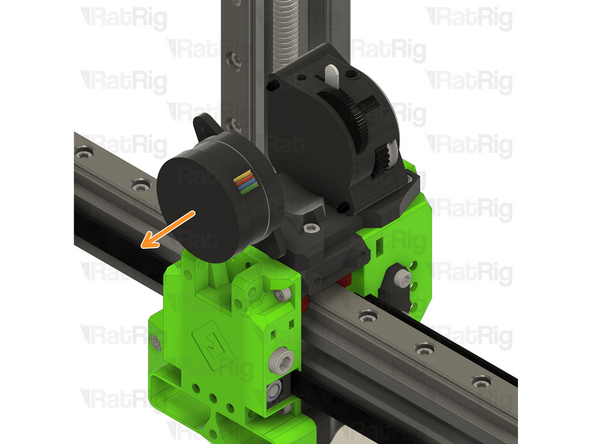

Remove the Bondtech LGX Lite motor from the back of the LGX Lite extruder

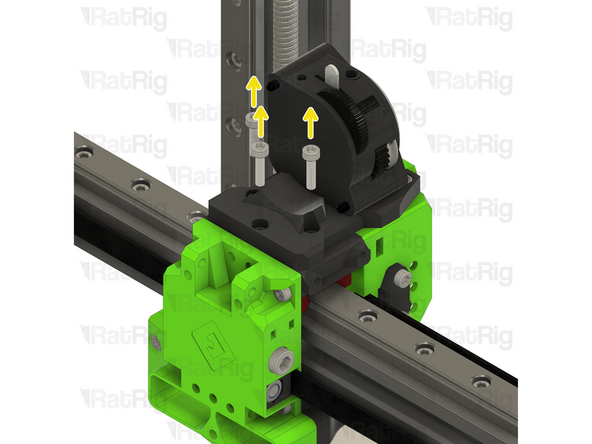

Remove the three M3x12 Cap Head Screws

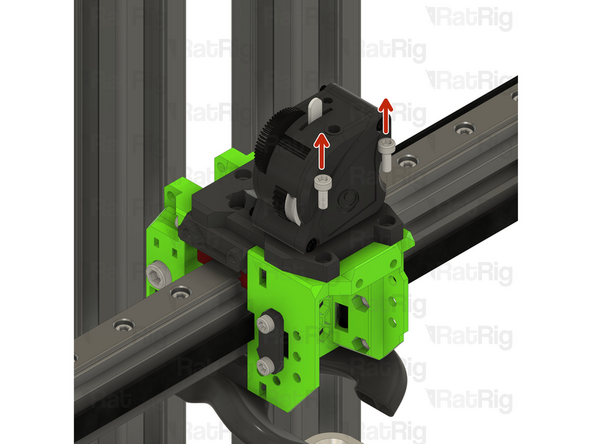

Remove the two M3x8 Cap Head Screws

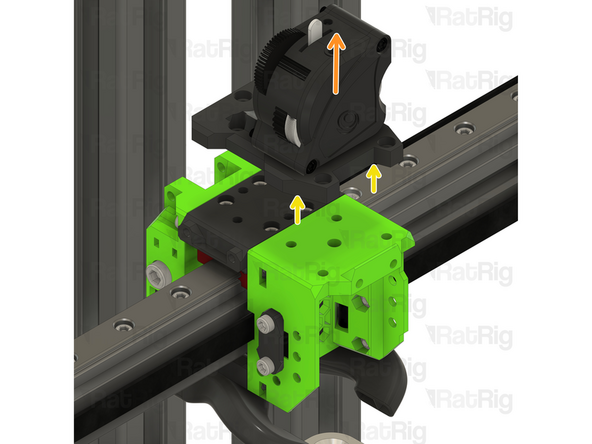

Remove the extruder assembly

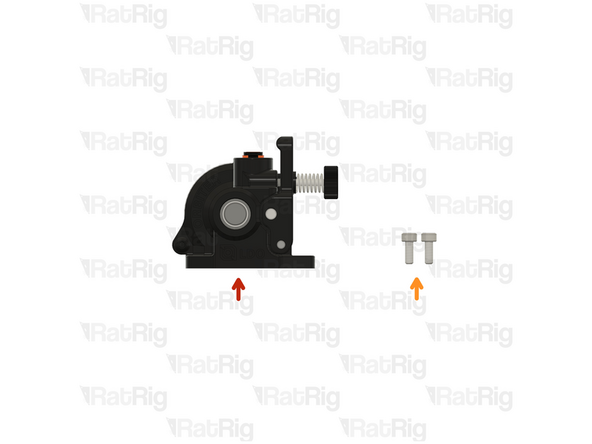

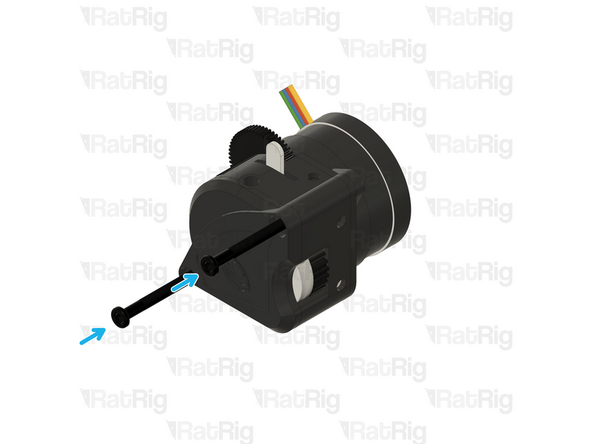

The new Rat Rig toolhead uses the Orbiter V2,

Remove the M3x8 Cap Head Screws holding the LGX Lite to the EVA3 drive_lgx_lite Printed Part

Reassemble the LGX Lite so you can safely store it.

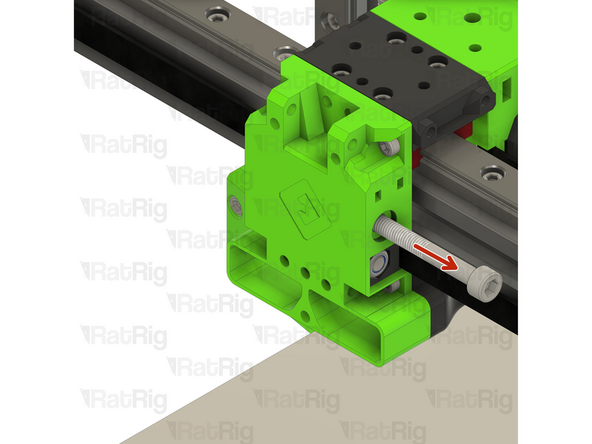

Loosen the M5x40 Cap Head Screw

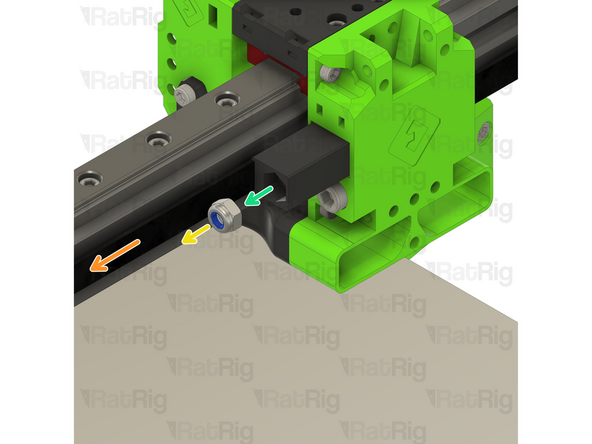

Pull the belt to help remove the CoreXY belt grabber

Remove the M5 nylon locking nut

Remove the belt grabber from the toolhead

Repeat the previous steps and remove the other CoreXY belt grabber

Remove the two M3x8 Cap Head Screws

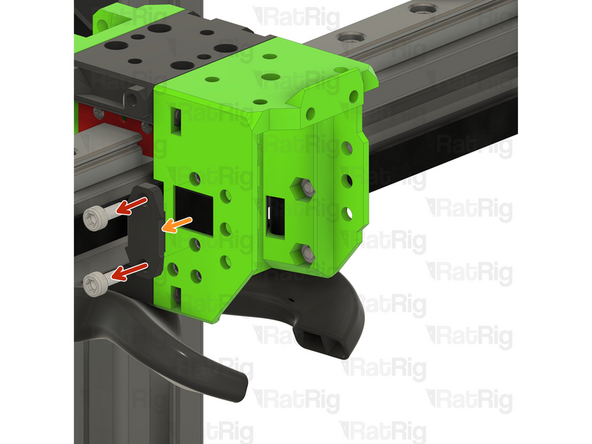

Remove the belt front belt holder

Repeat the previous steps for the other front belt holder

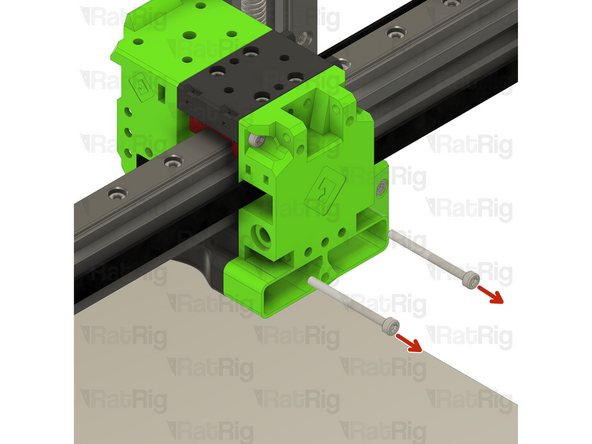

Remove the two M3x35 Cap Head Screws

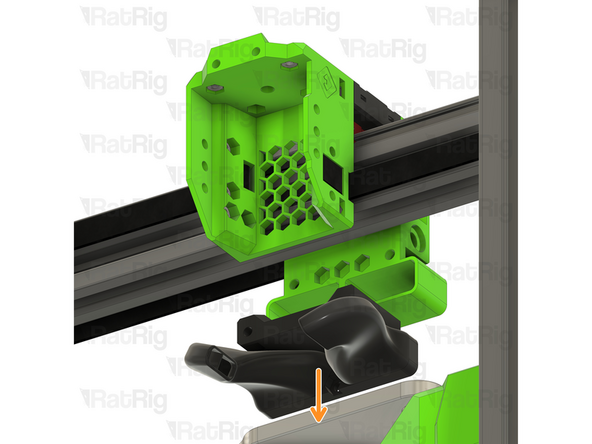

Pull down on the EVA horn ducts

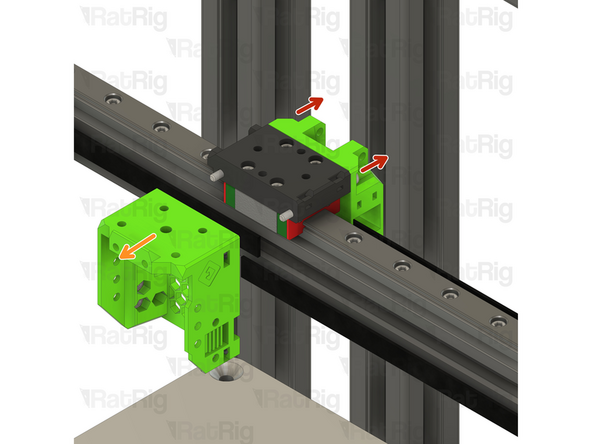

Remove the two M3x35 Cap Head Screws

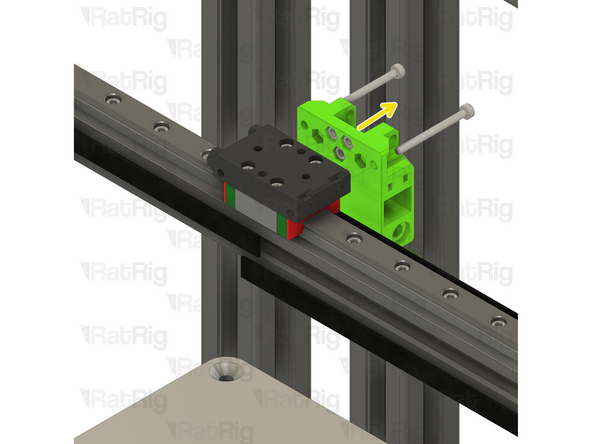

Pull on the EVA3 front assembly to remove it

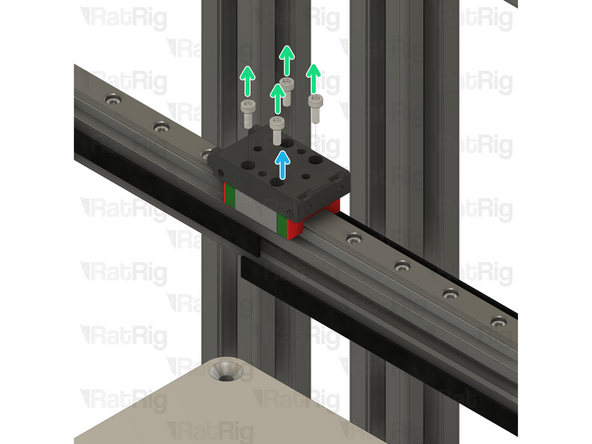

Pull on the EVA3 back assembly to remove it

Remove the four M3x8 Cap Head Screws

Remove the EVA3 mgn12 mount

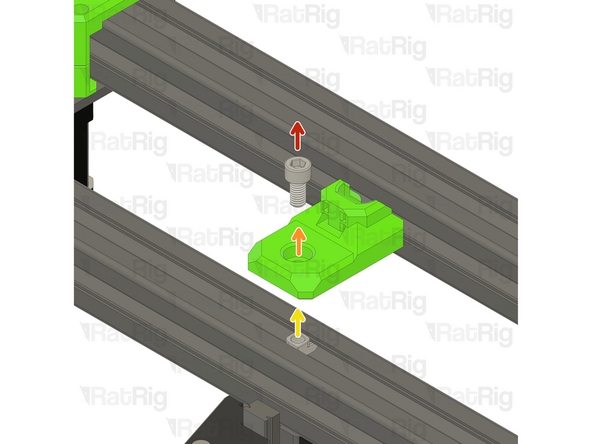

Locate the rear cable holder

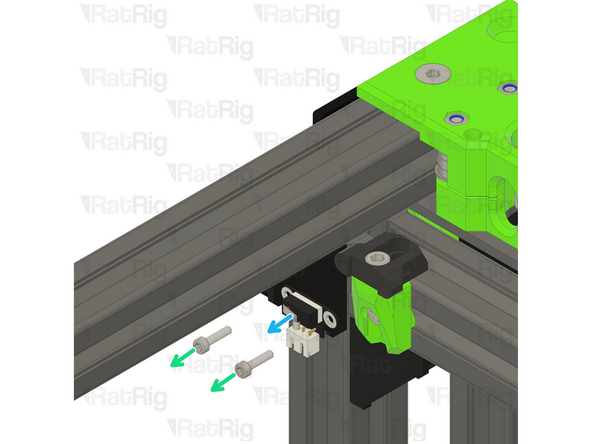

Remove the M6x12 Cap Head Screw

Remove the electronics_wire_guide_rear printed part from the frame

Remove the M6 3030 Drop in T-nut

Locate the Y endstop mount

Remove the two M3x12 Cap Head Screws

Disconnect the Enstop Module and set it aside, it will be re-used on the Rat Rig Toolhead V1.0

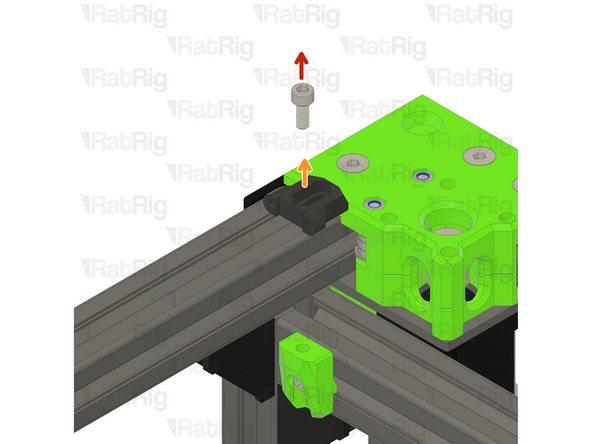

Remove the M5x12 Cap Head Screw

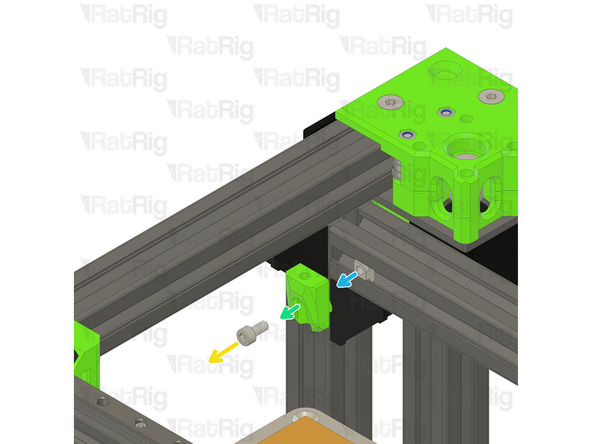

Remove the Y_max_endstop_slider printed part

Remove the M5x10 Cap Head Screw

Remove the Y endstop_max_block printed part

Remove the M5 3030 Drop in T-nut

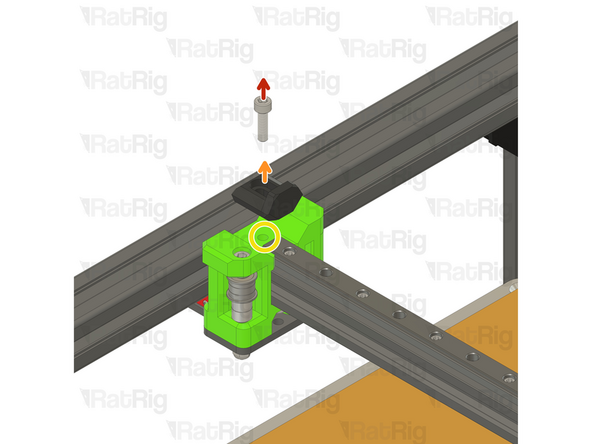

Remove the M5x18 Cap Head Screw

Remove the EVA3 endstop block

Avoid moving the machine around at this point, os the M5 Drop in T-nut doesn't slide around on the gantry extrusion.

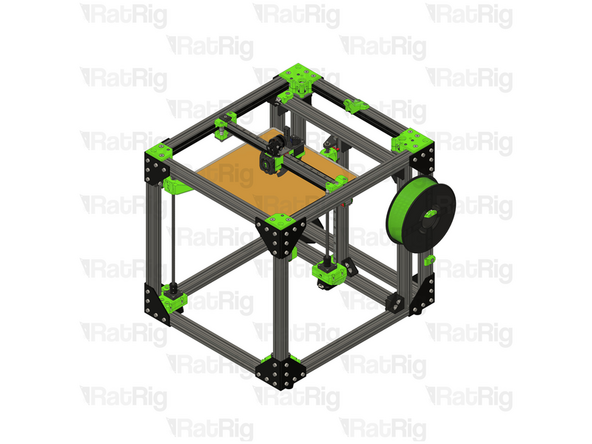

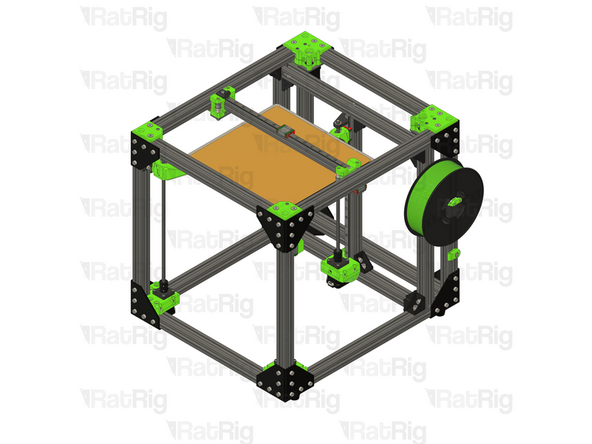

The V-Core 3.1 is now ready to receive the Rat Rig Toolhead V1.0 Upgrade kit

Remove the M3x45 Cap Head Screws

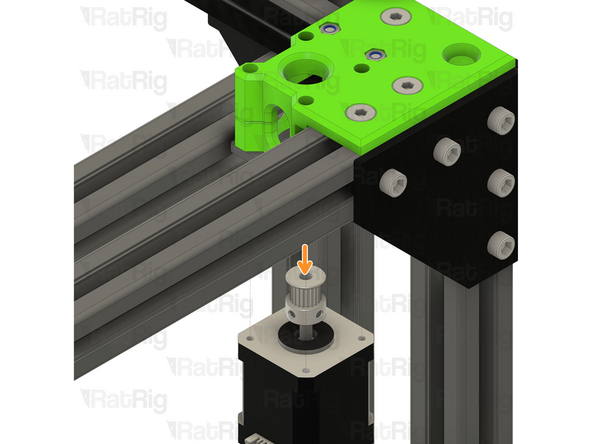

Remove the Stepper motor

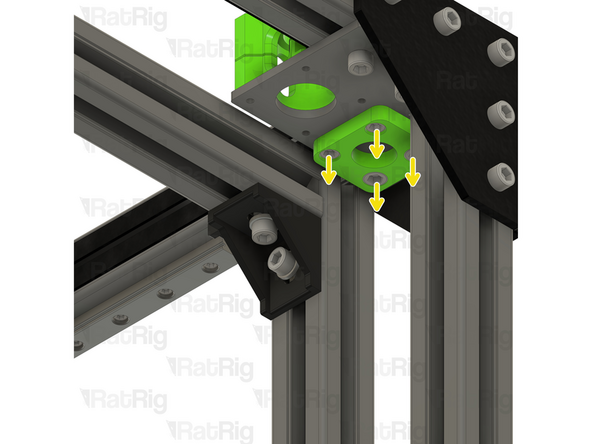

Remove the M5x40 Cap Head Screws

Remove the three M6x14 Screws

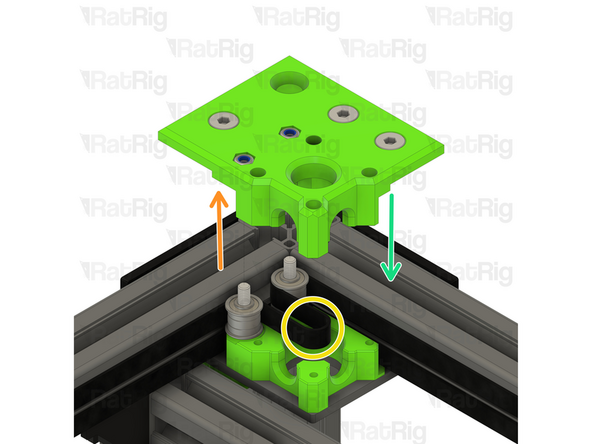

If the M6 Drop in T-nuts fall off, loosely thread them in the screws so you can easly reinstall the CoreXY motor cage top easily.

Remove the CoreXY motor cage top

Remove both of the old belts, then insert the two new ones following the same paths

Reinstall the CoreXY motor cage top

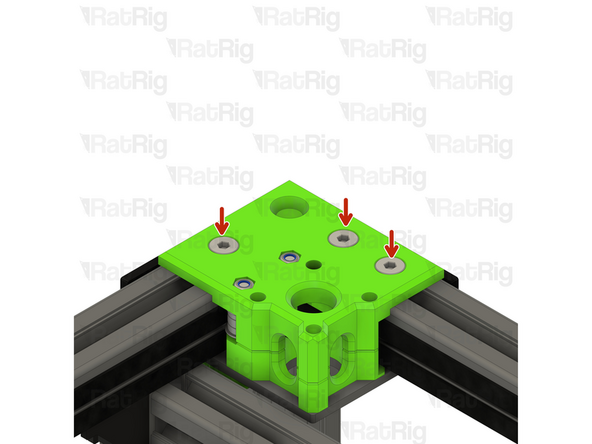

Tighten the three marked M6x14 screws to secure the CoreXY motor cage top to the frame

Tighten the M5x40 screws to secure the bearing stacks into the CoreXY motor cage top

Position the NEMA17 motor up and into the motor cage from below, it will be secured in the next step

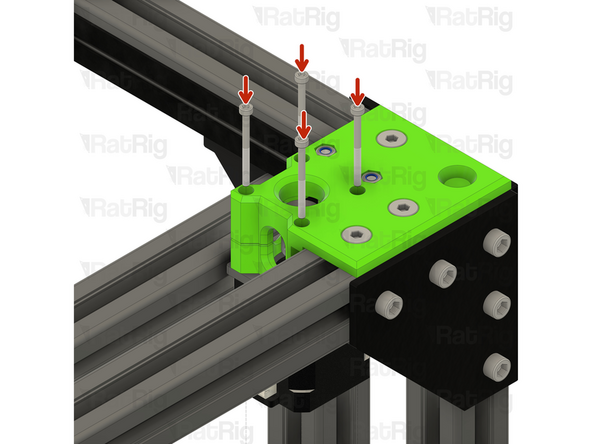

Insert the M3x35 screws into the xy_motor_cage_left_top as shown, and fasten them to secure the NEMA17 motor to the mount

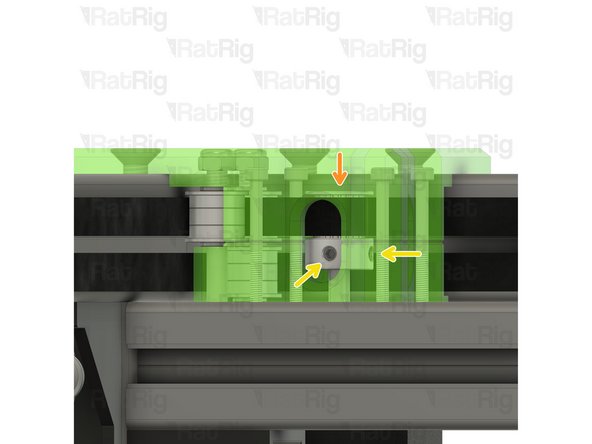

Check the alignment of the timing pulley, the belt should be on the middle of the pulley as shown

Adjust the pulley up or down if required to make sure the belt is in the middle of the pulley

Fasten both M3 grub screws to securely mount the timing pulley to the NEMA17 motor shaft

Repeat Steps 21 - 24 for the other CoreXY motor mount cage.

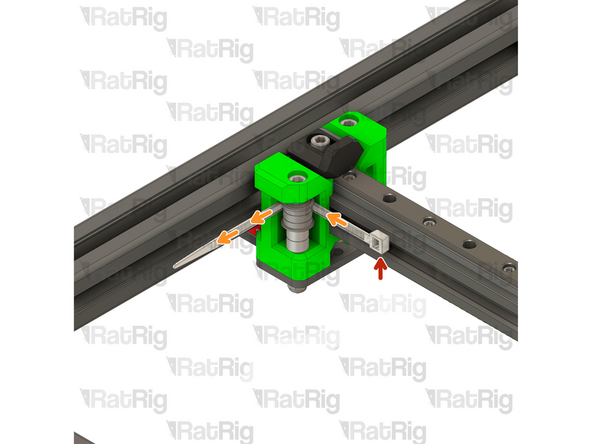

This step is not mandatory, it's just a Rat Rig tip on how to feed the belts on the idlers.

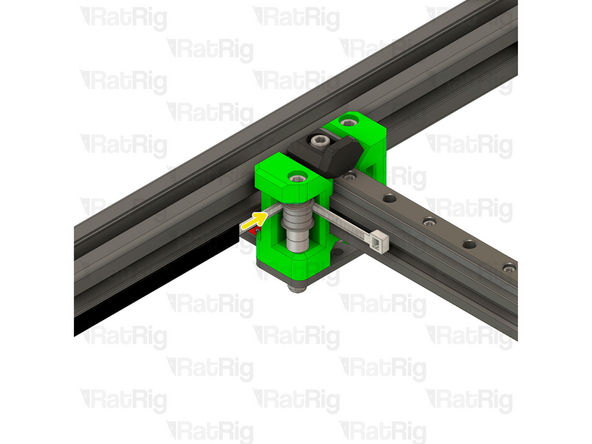

Zip Tie

The wider the zip tie is, the easier the process will be

Bend the tip of the zip tie a little bit and feed it between the printed part and the idler, as shown

Insert the belt between the zip tie and the idler

Slowly feed the belt and pull the zip tie at the same time

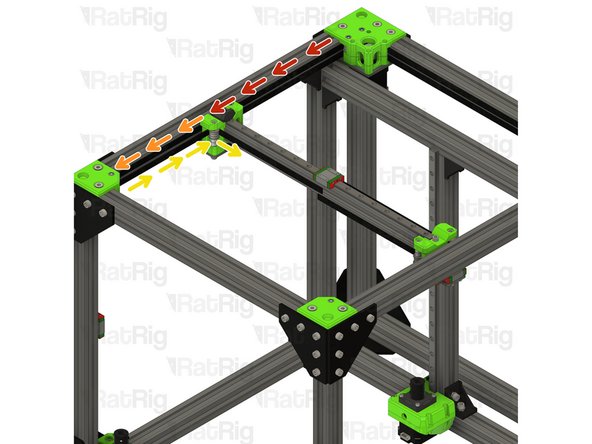

Take the loose end of the top CoreXY belt on the left hand side:

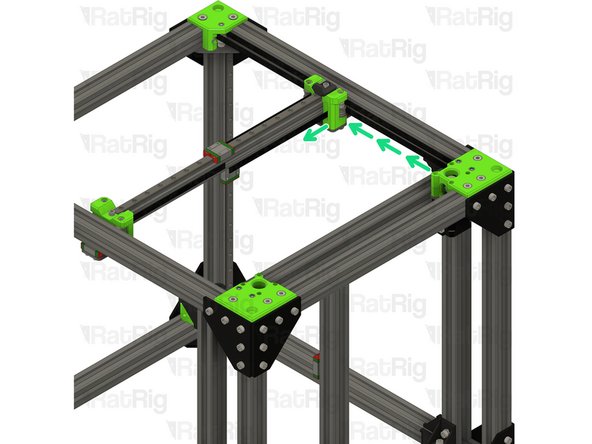

Feed the belt behind the left xy_joiner

Down and around the front xy_idler

Around the front bearing stack on the left xy_joiner

Take the loose end of the bottom CoreXY belt on the left hand side:

Feed the belt around the rear bearing stack on the xy_joiner

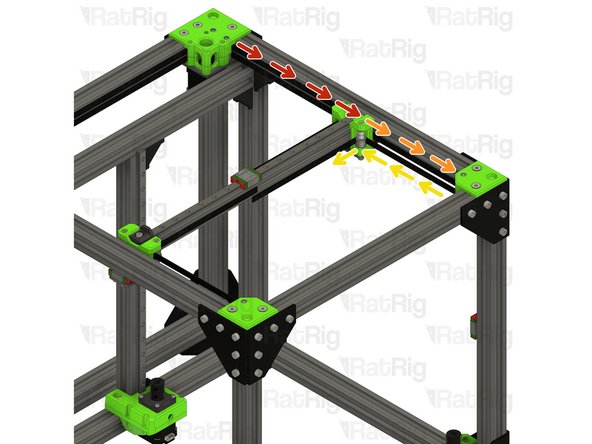

Take the loose end of the bottom CoreXY belt on the right hand side:

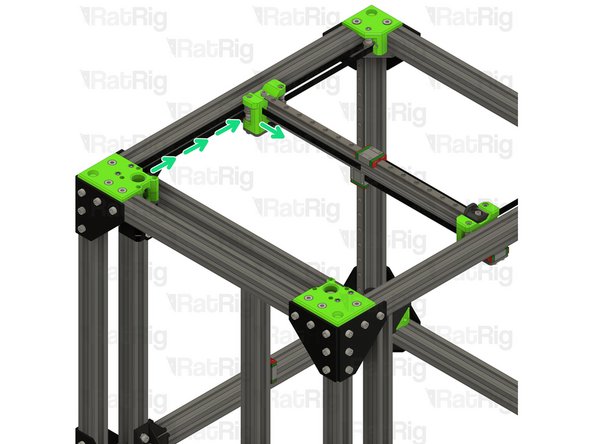

Feed the belt behind the right xy_joiner

Down and around the front xy_idler

Around the front bearing stack on the right xy_joiner

Take the loose end of the top CoreXY belt on the right hand side:

Feed the belt around the rear bearing stack on the xy_joiner

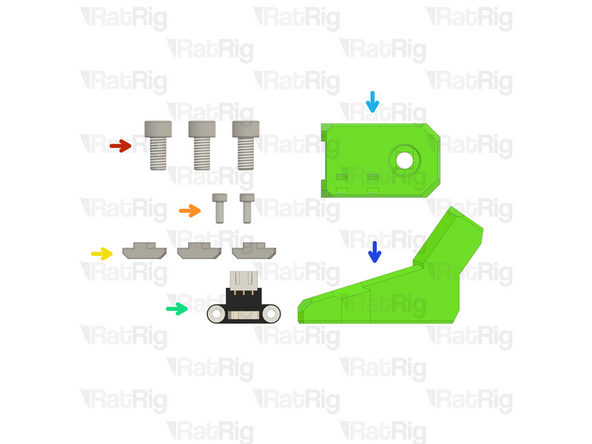

3x M6x12 Cap Head Screw

2x M3x8 Cap Head screw

3x 3030 M6 Drop In T-nut

Y endstop

Y_endstop printed part

Umbilical_frame printed part

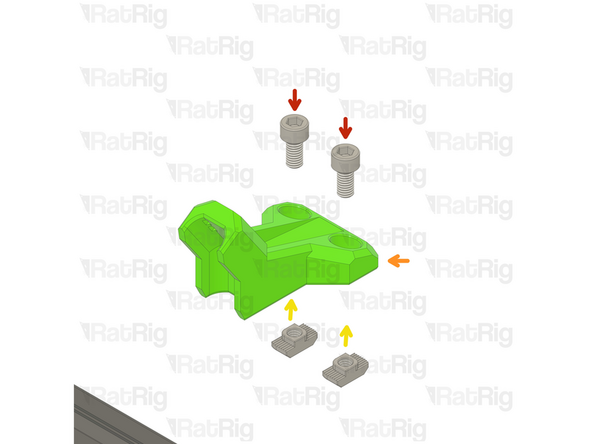

2x M6x12 Cap Head Screw

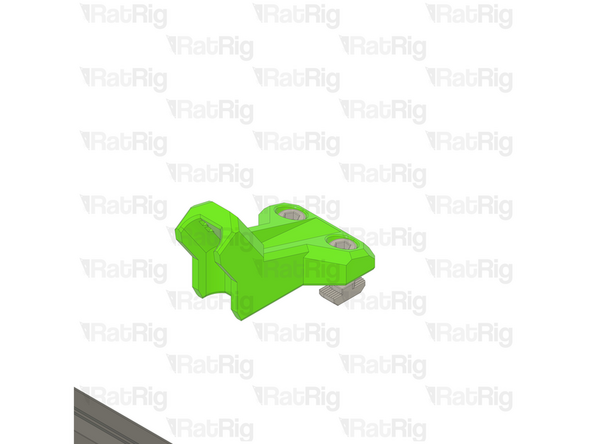

Install the M6 cap head screws into the printed part as shown.

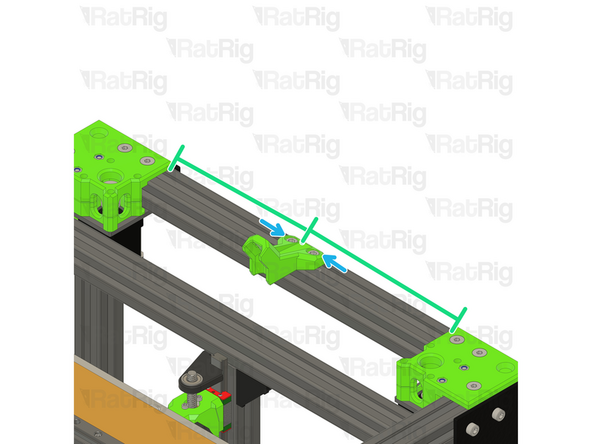

Umbilical_frame printed part

3030 M6 Drop In T-nut

Loosely thread a 3030 M6 T-Nut onto the M6x12 screws. Do not tighten it at this point

Make sure the printed part is on the middle of the rear extrusion.

Tighten the M6x12 screw to secure the umbilical mount to the frame.

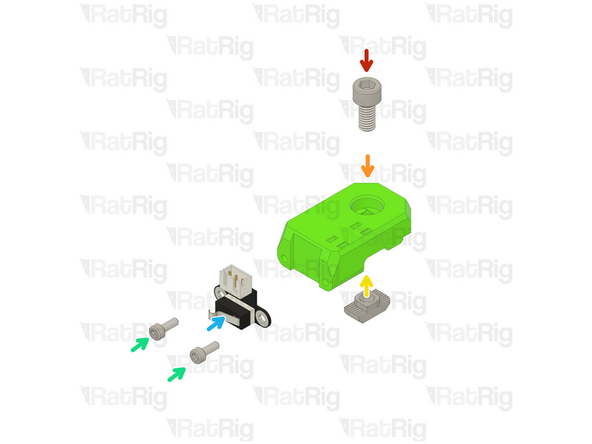

M6x12 Cap Head Screw

Y_endstop printed part

3030 M6 Drop In T-nut

Loosely thread a 3030 M6 T-Nut onto the M6x12 screw. Do not tighten it at this point

2x M3x8 Cap Head Screw

Y Endstop

Tighten the M6x12 screws to secure the endstop mount.

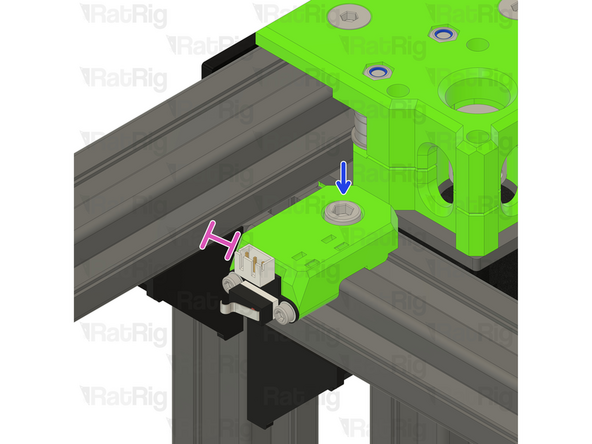

Ensure a 5mm gap between the 3030 extrusion and the Y_endstop printed part, this distance is required for the belts to operate smoothly.

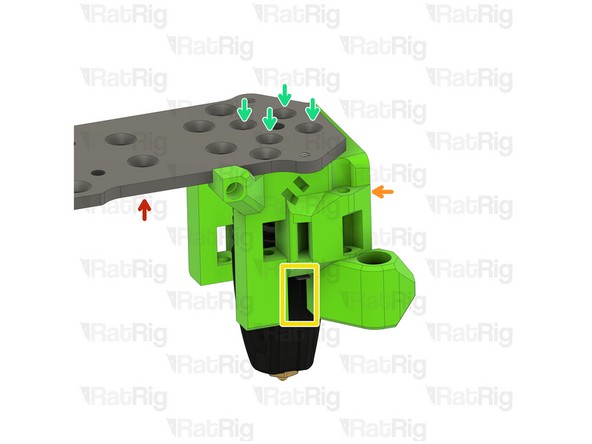

Rat Rig toolhead plate

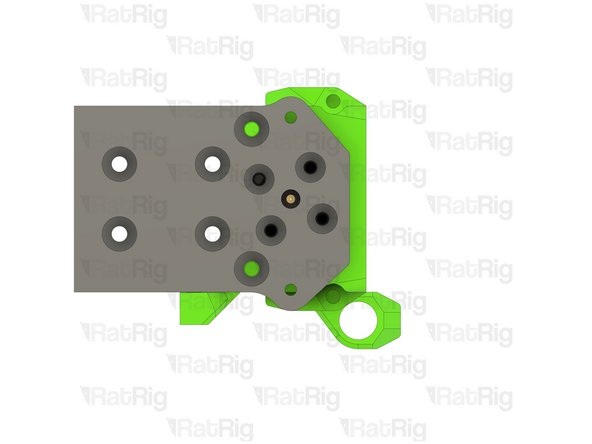

Rat Rig toolhead front printed part

Insert the Rapido V2 into the printed part as shown, and make sure the cables are positioned in the designated slot.

Look from above and see if all four holes line up correctly.

All the holes on the plate, hotend and printed part should line up:

If they align skip to step 35

If they don't align follow the next steps

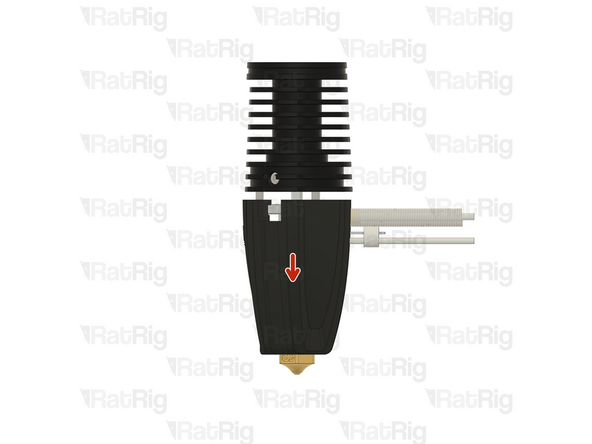

If the cables of your Rapido 2 hotend don't align perfectly with the toolhead slot, please follow the next steps:

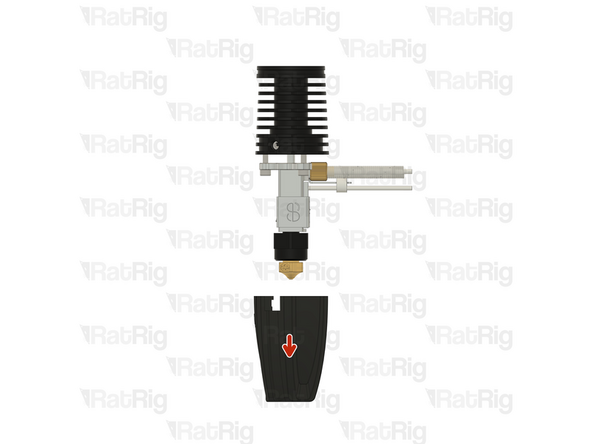

Push down on the silicone sock to remove it

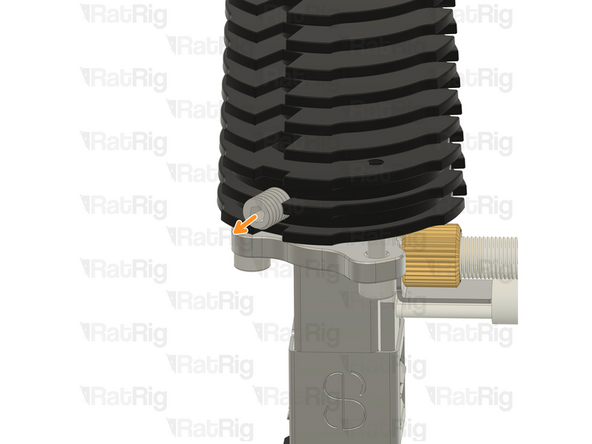

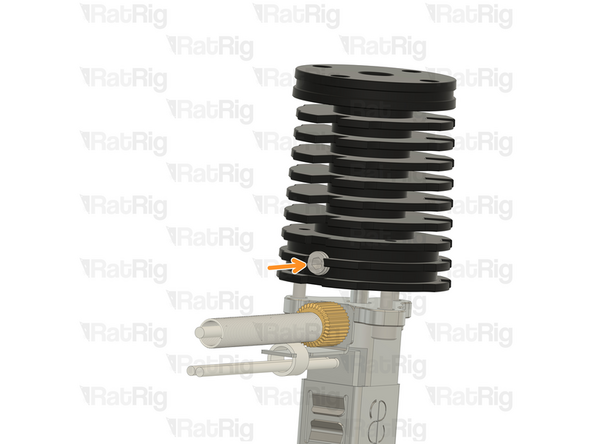

Loosen the set screw on the heatsink

Do not remove it completely to avoid losing it

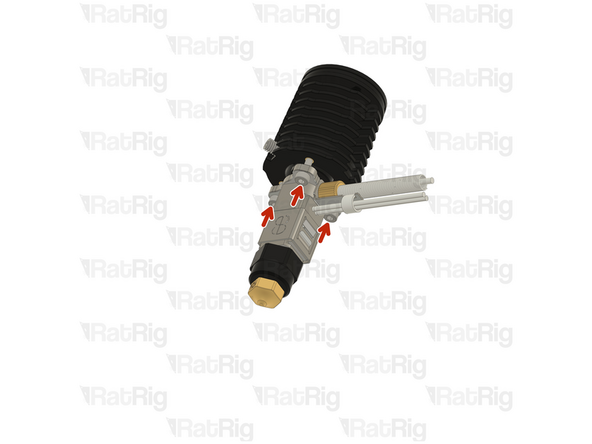

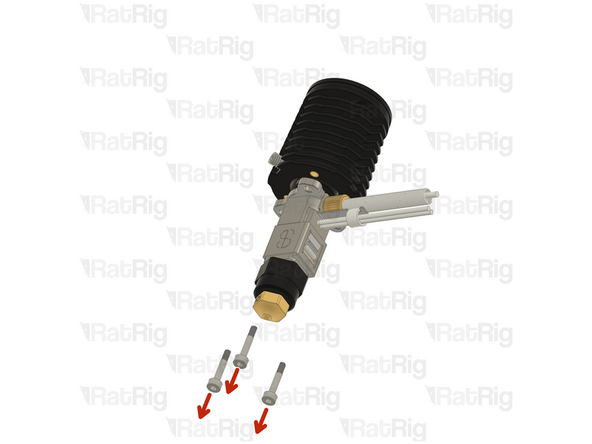

Remove the 2.5 Cap Head Screws from the hotend

Carefully rotate the heatsink until the three screw holes align again.

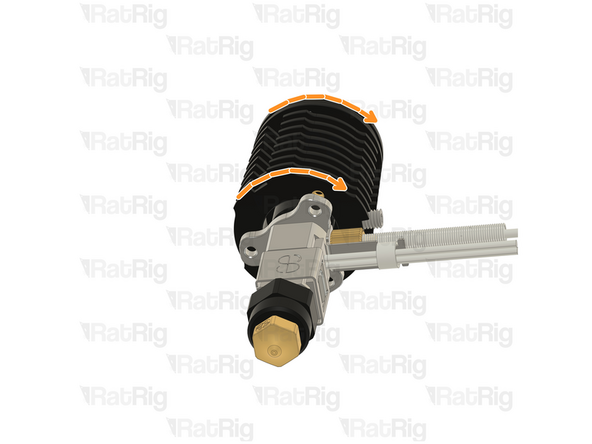

There isn't a way to tell how much you need to rotate you hotend, it might be just 120º or it might be 240º. It's a matter of trial and error.

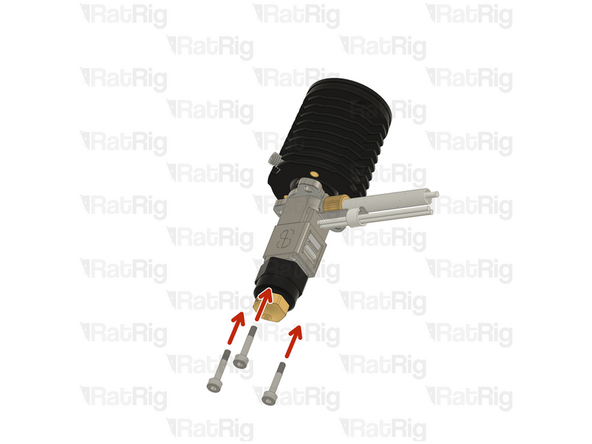

Insert the 2.5mm Cap Head Screws back in and tighten them.

DO NOT overtighten the screws, they are only 2.5mm and will break if excessive force is applied.

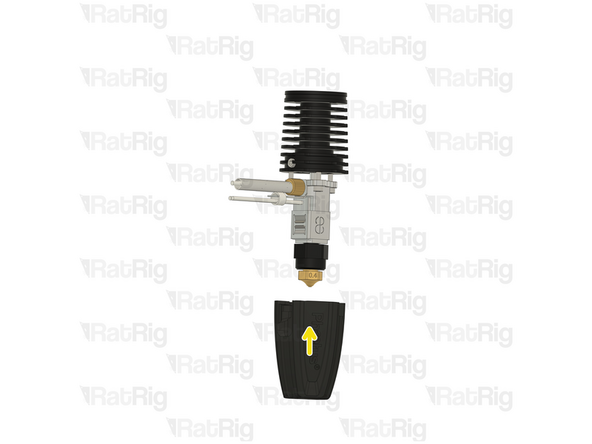

Tighten the set screw back in

DO NOT overtighten the screw, if excessive force is applied the heatbreak will be permanently damaged.

Put the socket back on

Try to insert the hotend on the toolhead and see if the cables align with the designated slot, if not, repeat steps 32-34 and try a different angle in step 34

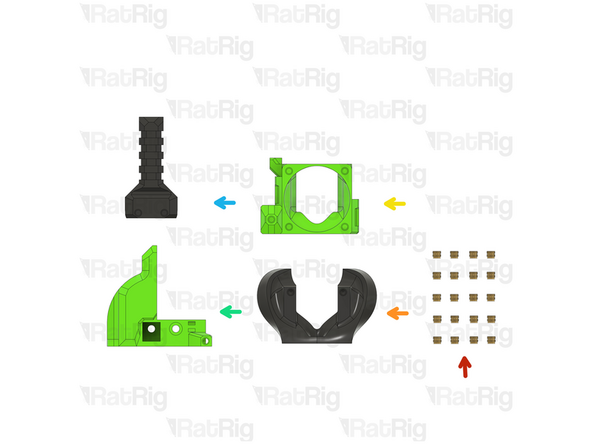

20x Heat insert M3

1x rr_toolhead_vc3_duct_beta2 printed part

1x rr_toolhead_vc3_front_beta2 printed part

1x rr_toolhead_vc3_back_beta2 printed part

1x rr_toolhead_vc3_umbilical_beta2 printed part

If you bought the printed parts from Rat Rig, the heat inserts are already in place. Skip to Step 39.

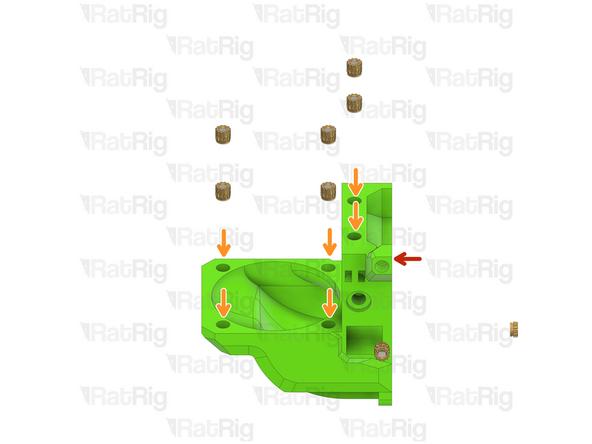

1x rr_toolhead_vc3_back_beta2 printed part

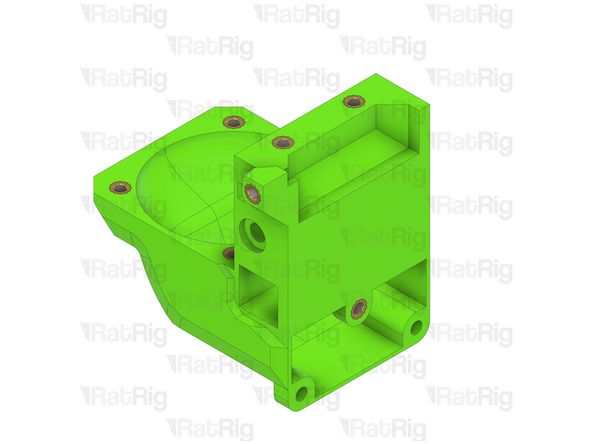

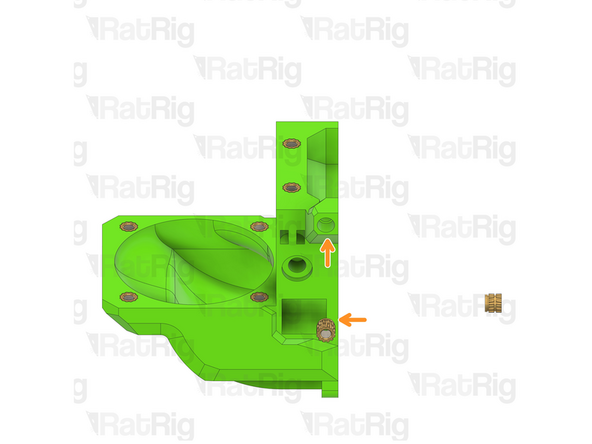

8x Heat insert M3

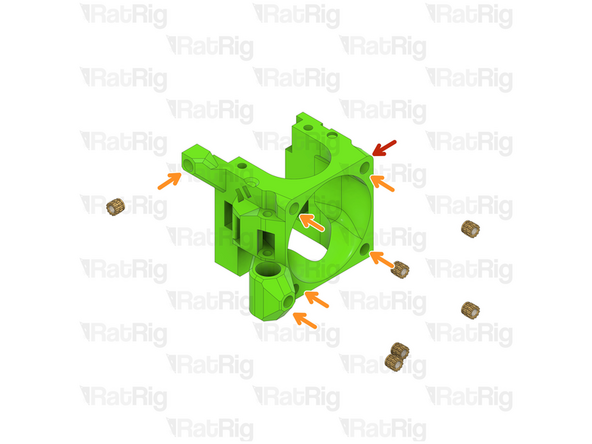

1x Rat Rig toolhead_front_beta2 printed part

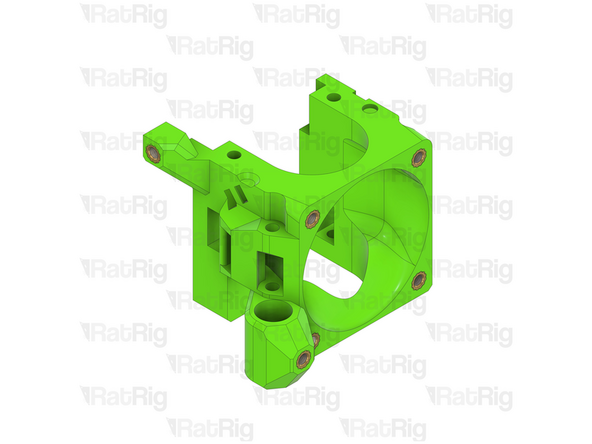

6x Heat insert M3

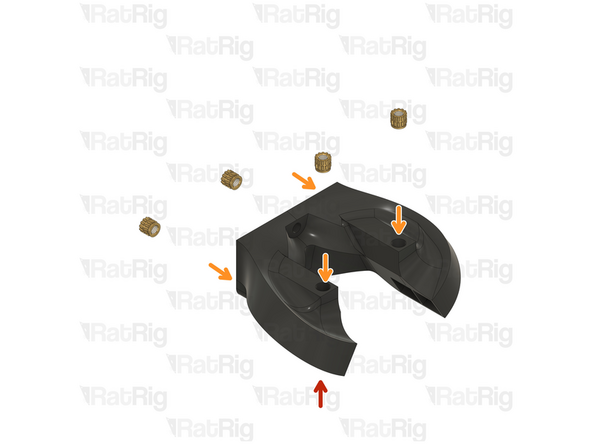

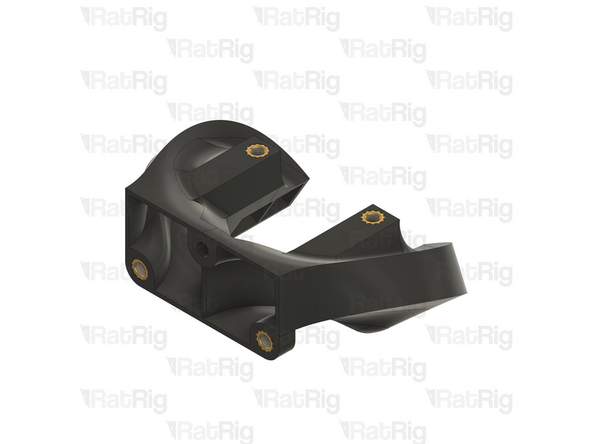

1x Rat Rig toolhead_duct_beta2 printed part

4x Heat insert M3

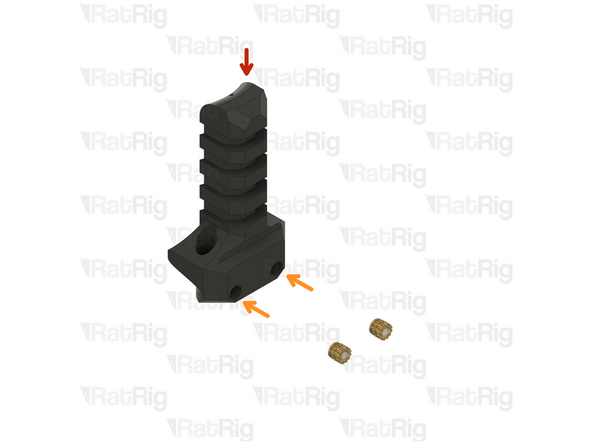

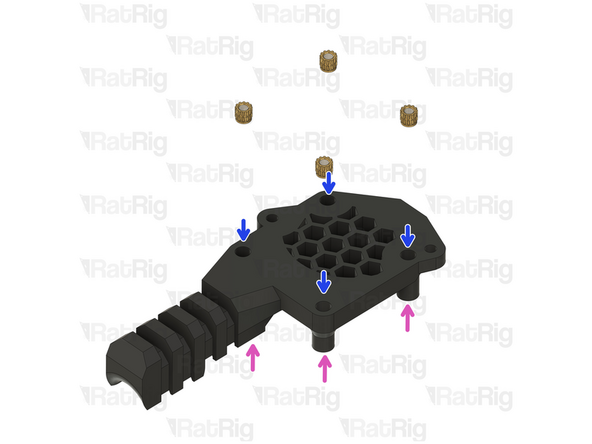

1x Rat Rig toolhead_umbilical_beta2 printed part

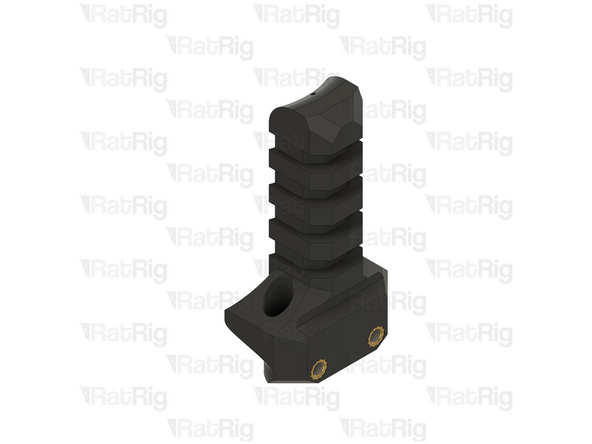

2x Heat insert M3

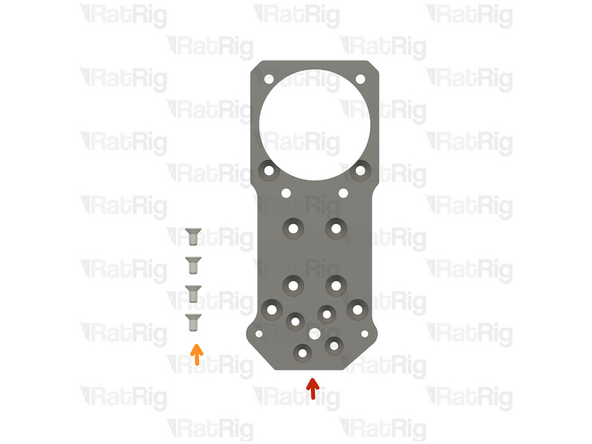

1x Rat Rig toolhead plate

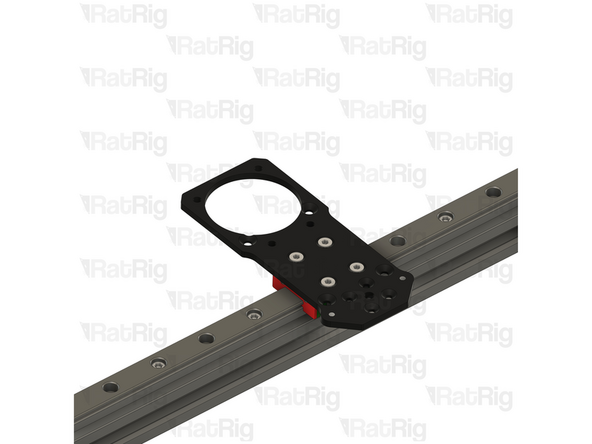

4x M3x6 Countersink Screw

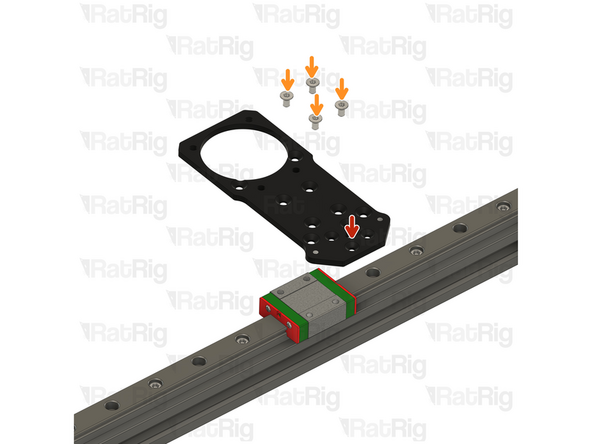

Rat Rig toolhead plate

4x M3x6 Countersink Screw

Tighten the M3x6 Countersink Screws to secure the plate to the carriage.

Avoid using a ball end hex key, as they are more prone to damaging the sensitive M3 countersink screw head.

After tightening of the screws, it is essential to verify that the X carriage retains its free movement. Excessive tightening of the screws may lead to the binding of the carriage.

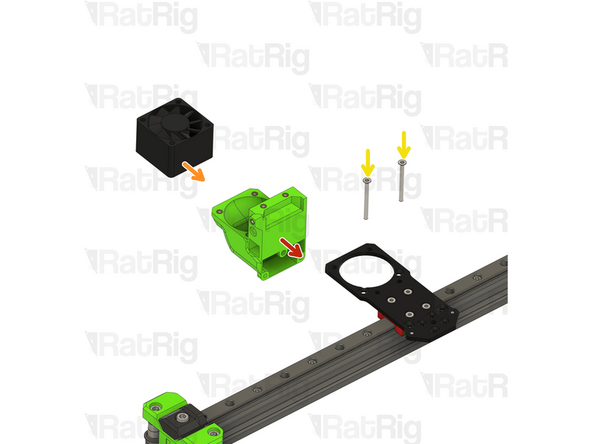

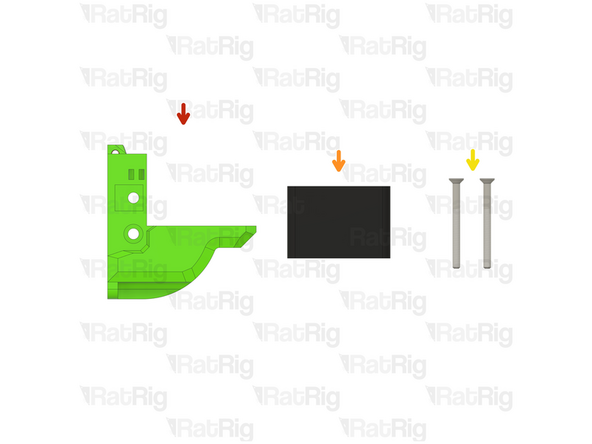

Rat Rig toolhead back assembly

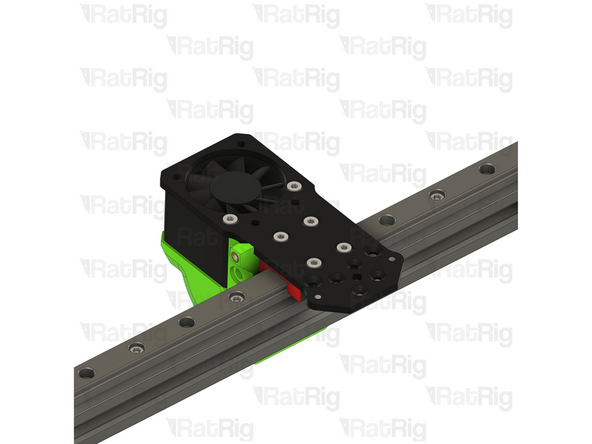

1x 4028 Part Cooling Fan

2x M3x35 Countersink Screw

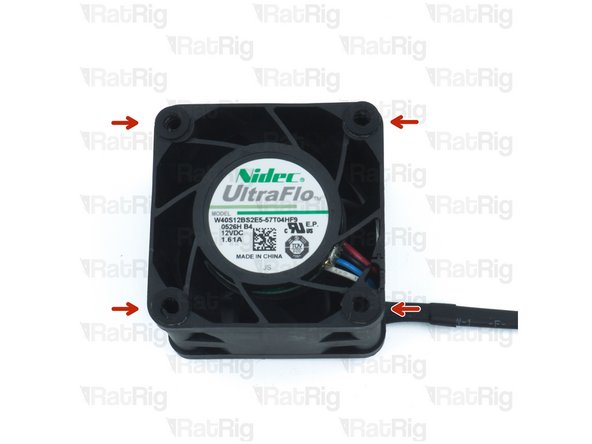

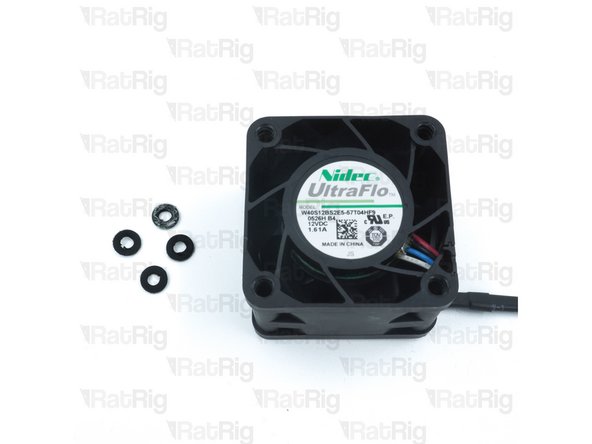

Remove the four rubber spacers on the 4028 Part Cooling Fan

Rat Rig toolhead back assembly

4028 Part Cooling Fan

2x M3x35 Countersink Screw

Tighten the M3x35 screws.

Take care not to over tighten the M3x35 screws as you can damage the printed parts

Avoid using a ball end hex key, as they are more prone to damaging the sensitive M3 countersink screw head.

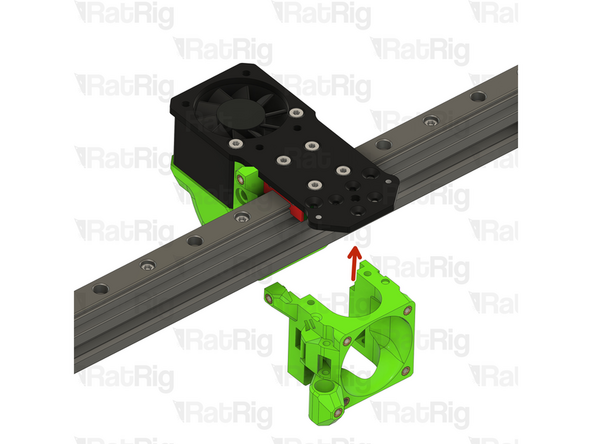

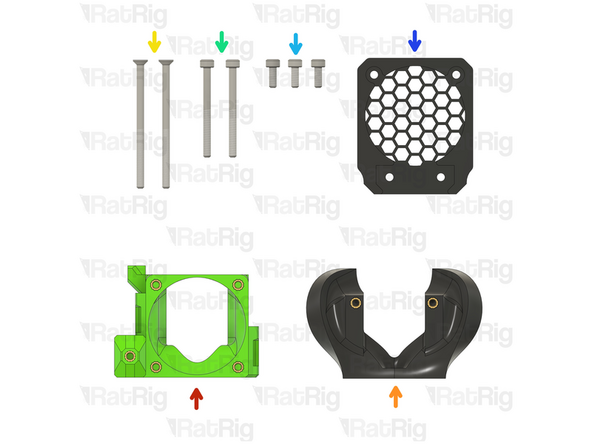

Rat Rig toolhead front assembly

Rat Rig toolhead duct assembly

2x M3x50 Countersink Screw

2x M3x35 Cap Head Screw

3x M3x8 Cap Head Screw

1x Rat Rig toolhead fan grille printed part

Rat Rig toolhead front assembly

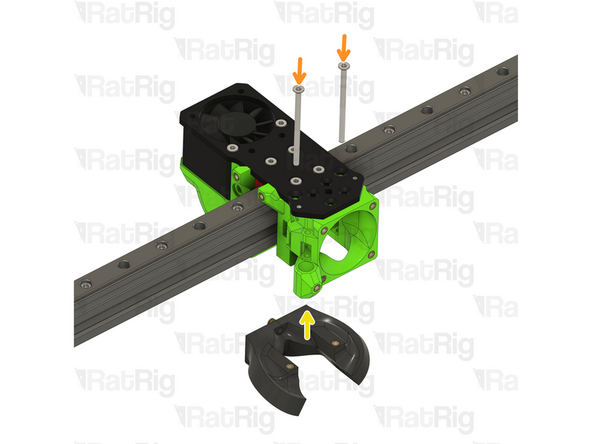

2x M3x50 countersink screws

Rat Rig toolhead duct assembly

The M3x50 countersink screws must go through the holes on the front assembly and thread into the duct assembly.

Take care not to over tighten the M3x50 screw as you can damage the printed parts

Avoid using a ball end hex key, as they are more prone to damaging the sensitive M3 countersink screw head.

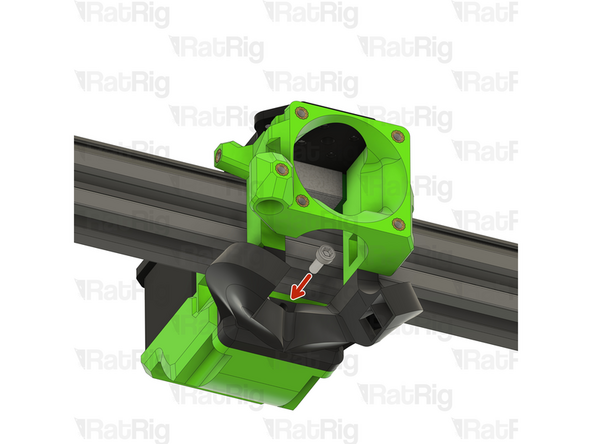

3x M3x8 Cap Head Screw

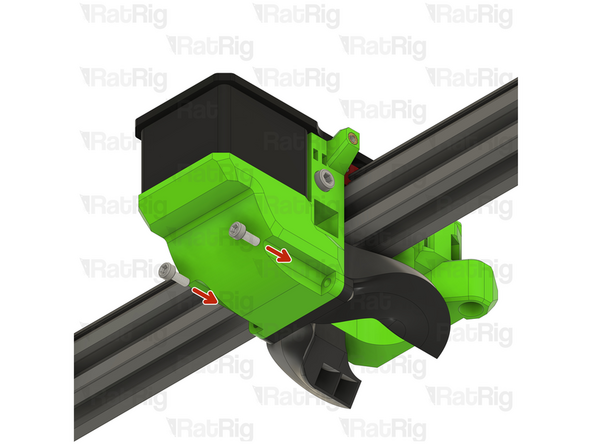

Secure the duct assembly to the toohead.

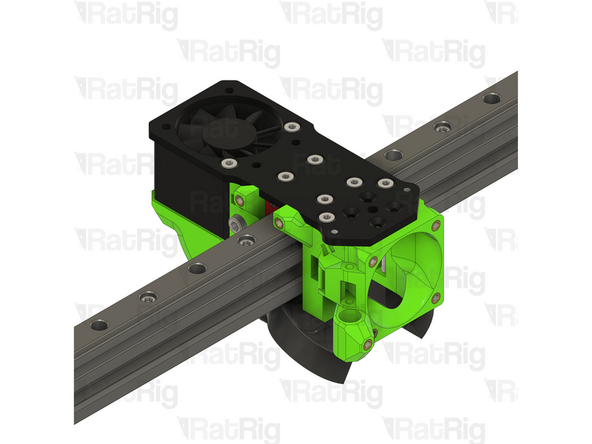

Take care not to over tighten the screws as you can damage the printed parts

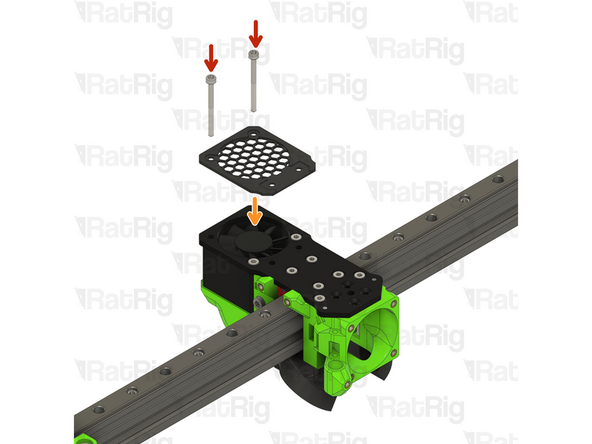

2x M3x35 Cap Head Screw

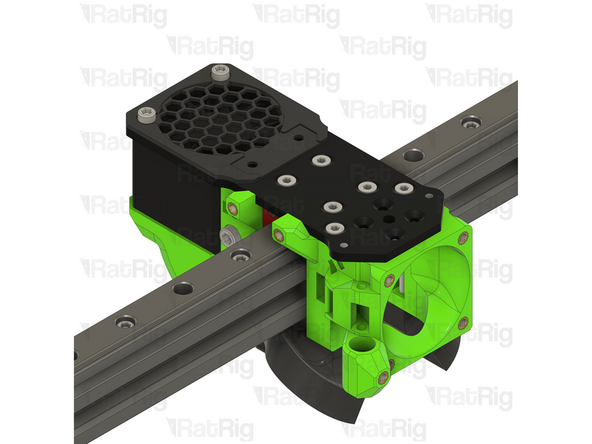

Rat Rig toolhead fan grille printed part

Take care not to over tighten the M3x35 screws as you can damage the printed parts

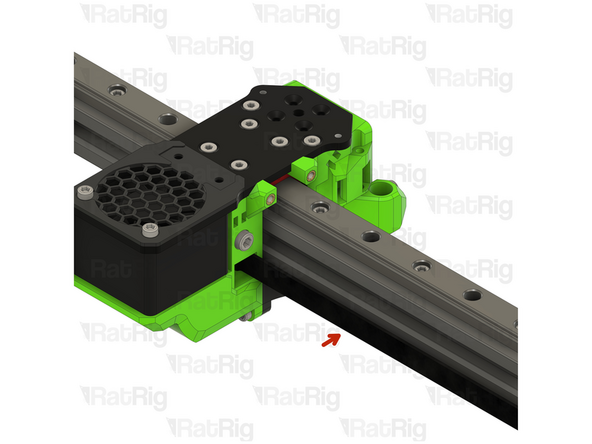

Make sure the belt is properly seated on all idlers and pulleys

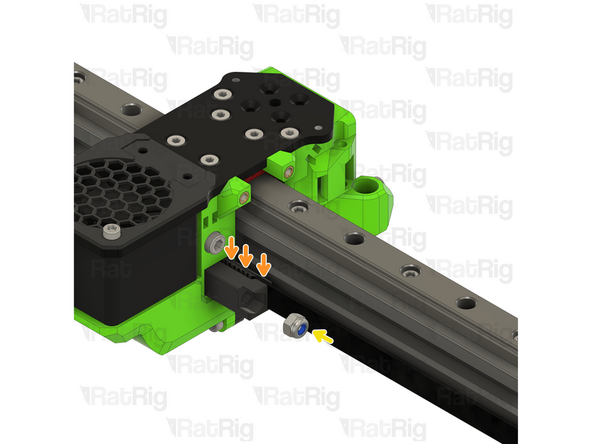

Insert the end of the belt inside the belt tensioner, and make sure the teeth are secured.

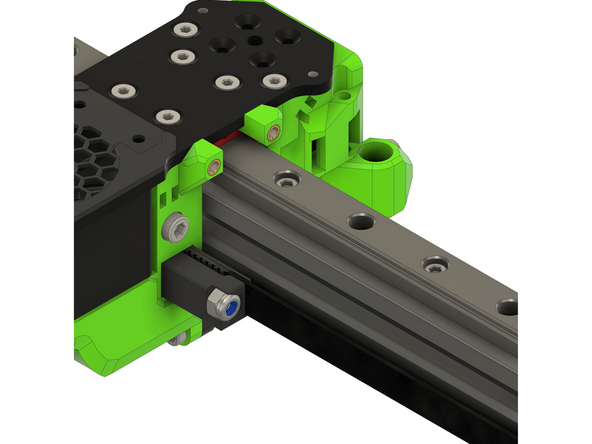

M4 Nylon Locking Hex Nut

Insert the M4 nylon locking nut into the Rat Rig toolhead belt tensioner as shown

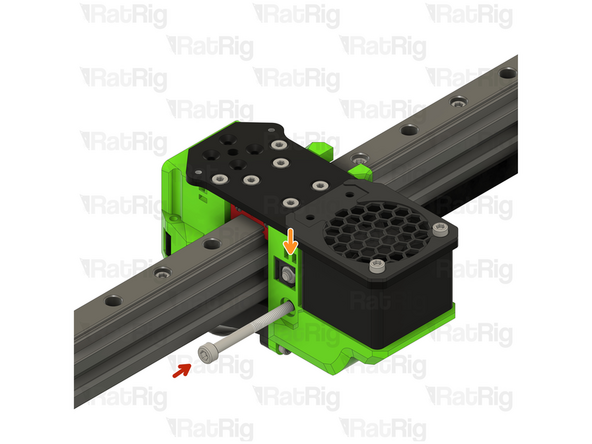

M4x40 Cap Head Screw

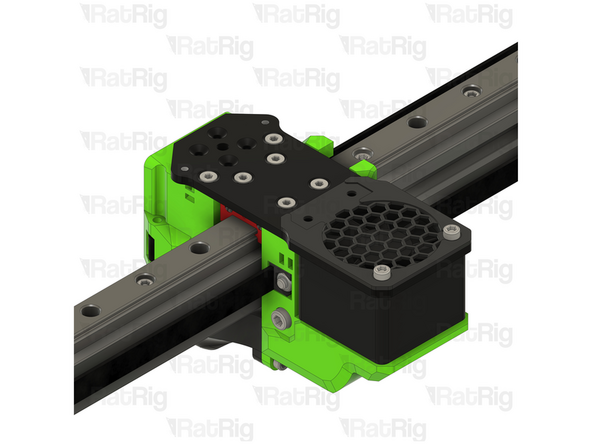

Tighten the M4x40 Cap Head just enough to hold the M4 Nylon Locking Hex Nut

Repeat Step 48 and assemble the second belt tensioner block.

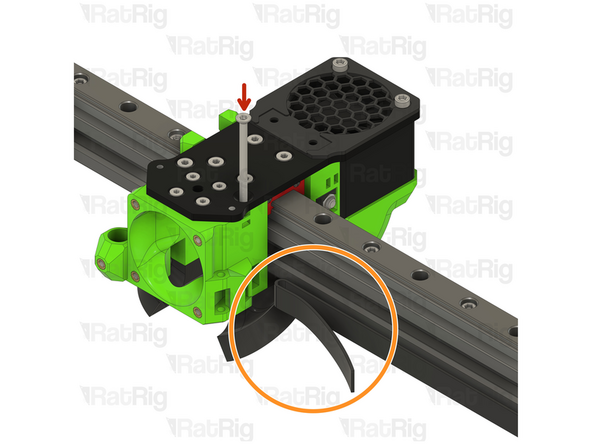

Remove the M3x50 countersink screw almost all the way

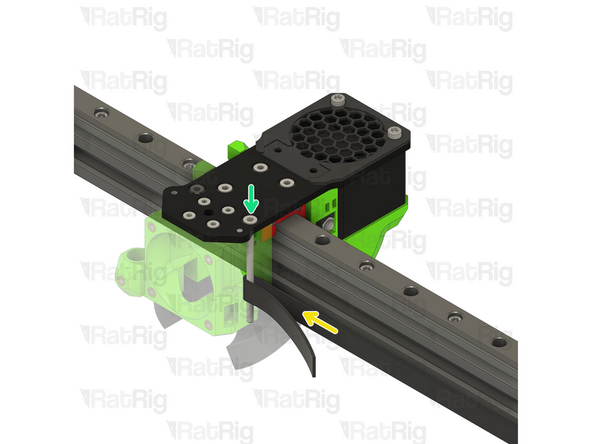

Make a small loop on the belt as shown.

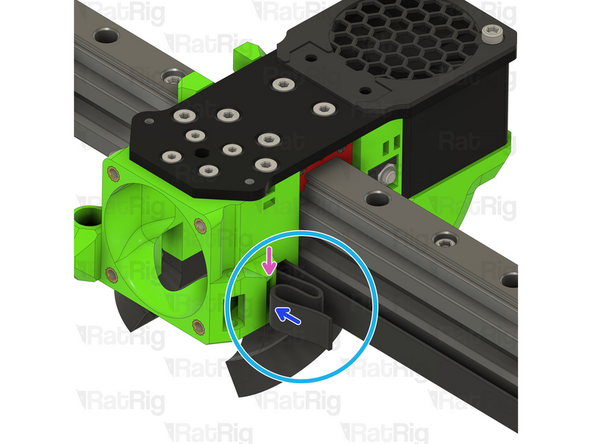

Feed the belt loop into the slot

Tighten the M3x50 countersink screw and make sure the belt goes around it, as shown in the picture.

Make a new loop on the belt, it helps if the loop is big, so it can be managed more easily.

Feed the belt loop into the slot

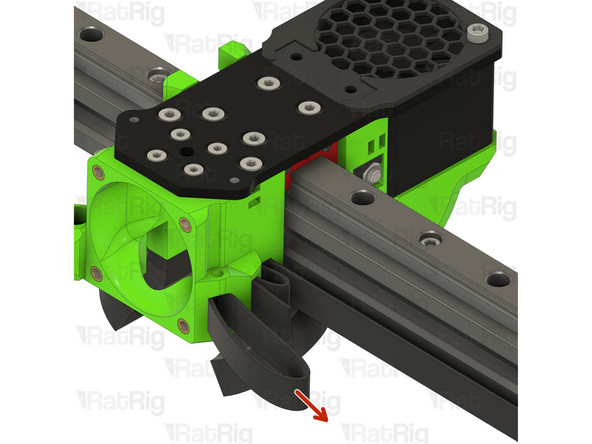

Make sure the loop is all the way fed thought the slot

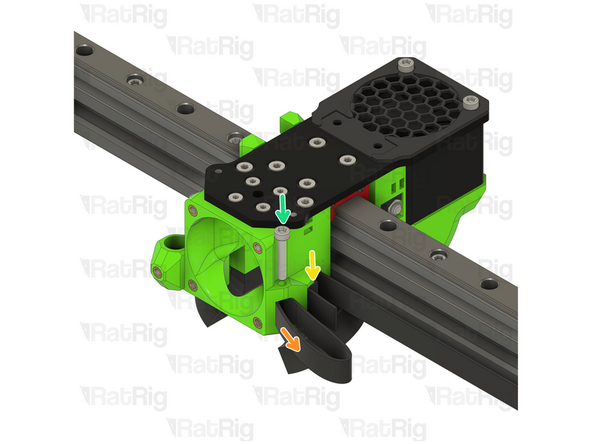

Pull this side of the belt

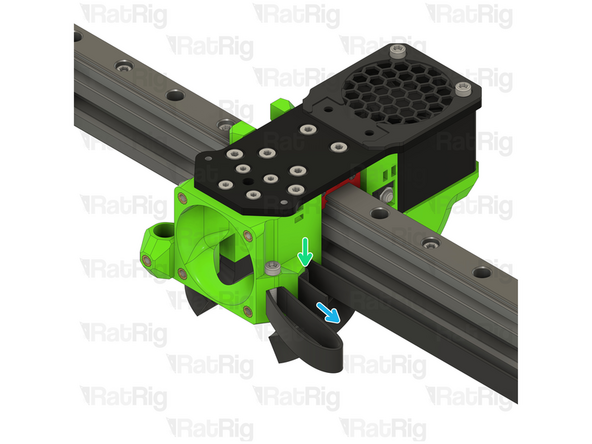

Make sure the small portion of the belt, indicated with the yellow arrow, is tight against the printed part

Insert an M3x18 Cap Head Screw

Pull the belt end to tighten the loop around the screw

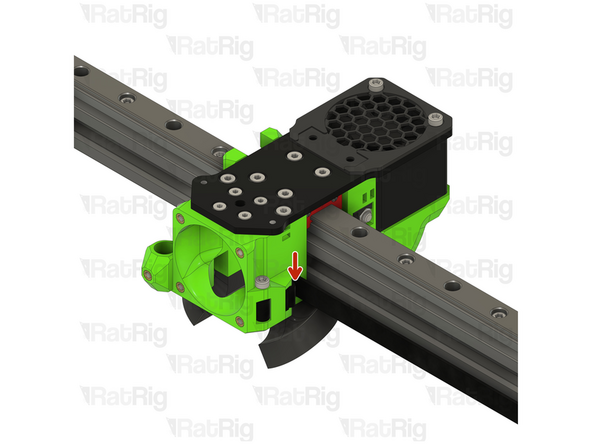

Cut the excess belt

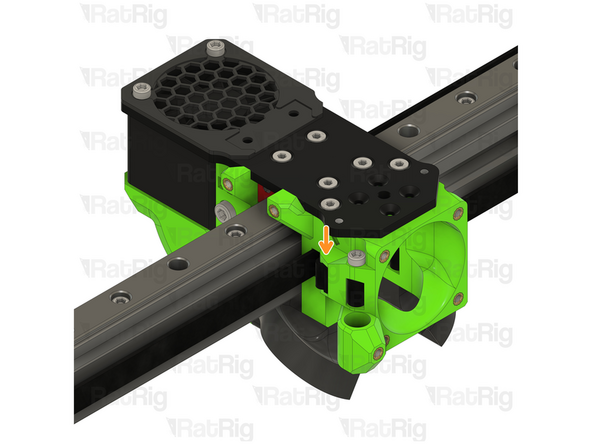

Repeat Steps 50, 51 and 52 and attach the other belt.

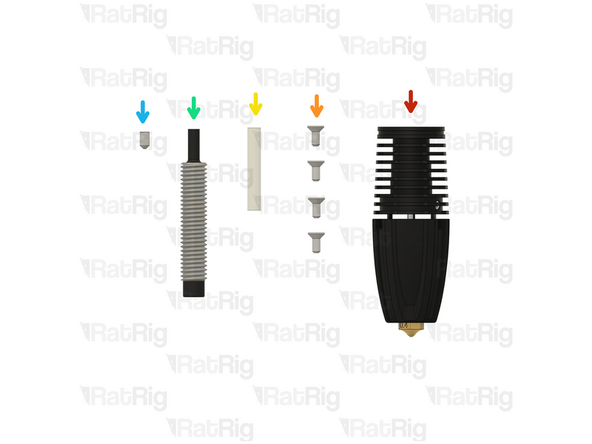

Phaetus Rapido V2 UHF Hotend

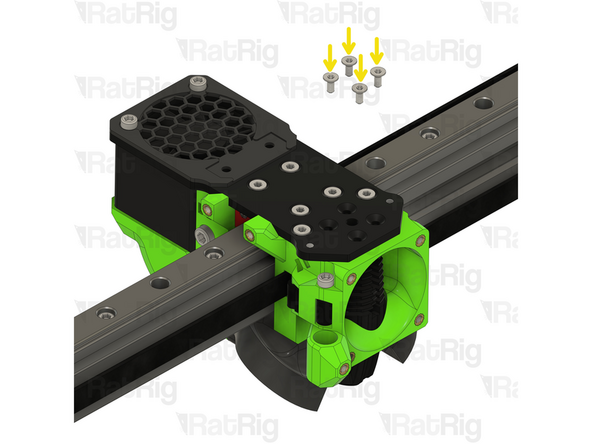

4x M2.5x6 Countersink Screw

PTFE tube - 24.5mm

Rat Rig SuperPinda Probe by P&F

M3x5 Set Screw

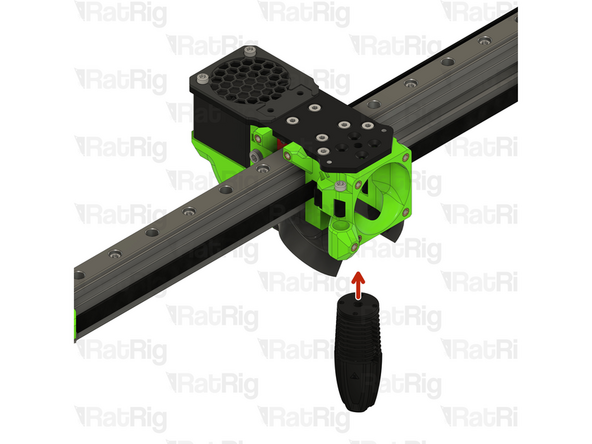

Phaetus Rapido V2 UHF Hotend

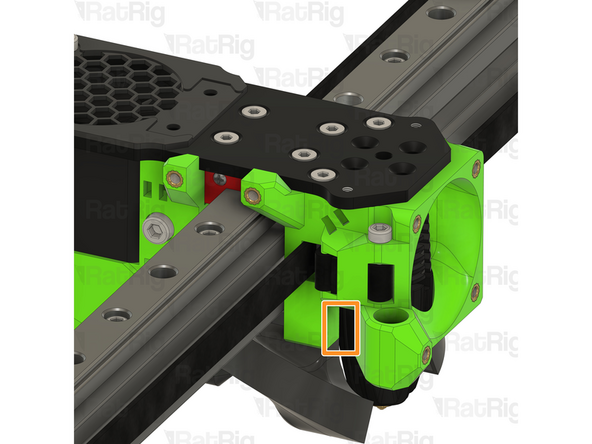

Place the Phaetus Rapido V2 UHF Hotend on the plate, making sure to route the cables through the designated slot

4x M2.5x6 Countersink Screw

Tighten the M2.5x6 Countersink Screws to secure the hotend to the plate

Avoid using a ball end hex key, as they are more prone to damaging the sensitive M2.5 countersink screw head.

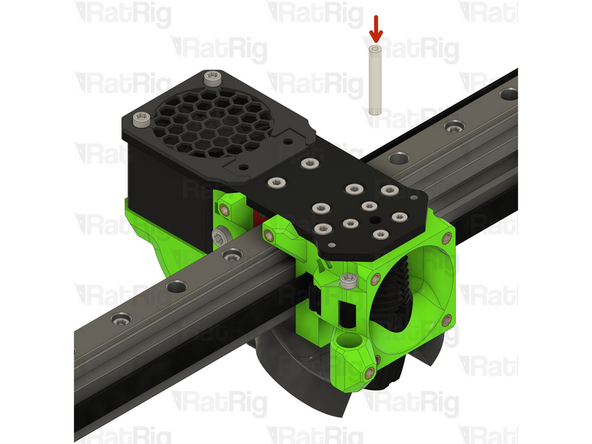

PTFE tube - 24.5mm

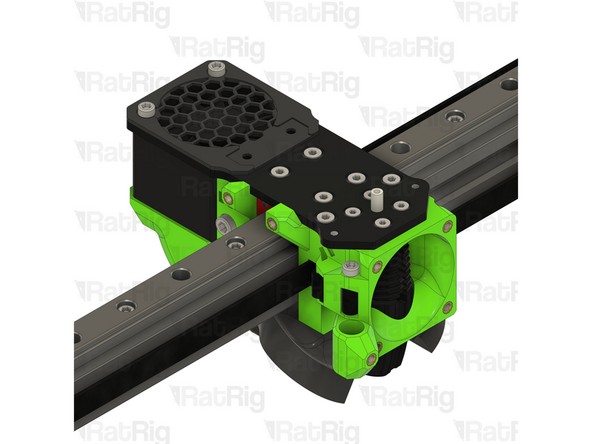

Insert the PTFE tube in to the marked hole and push it until it stops

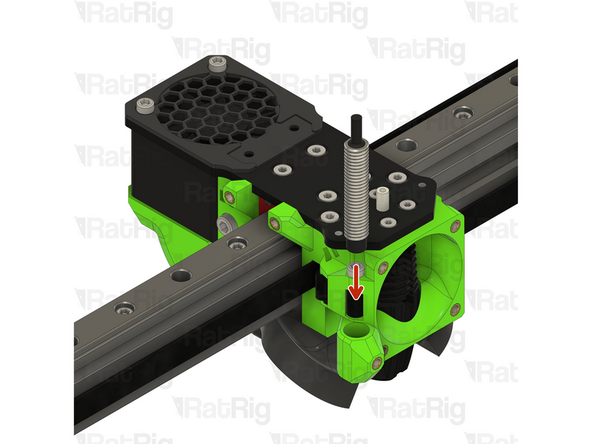

Rat Rig SuperPinda Probe by P&F

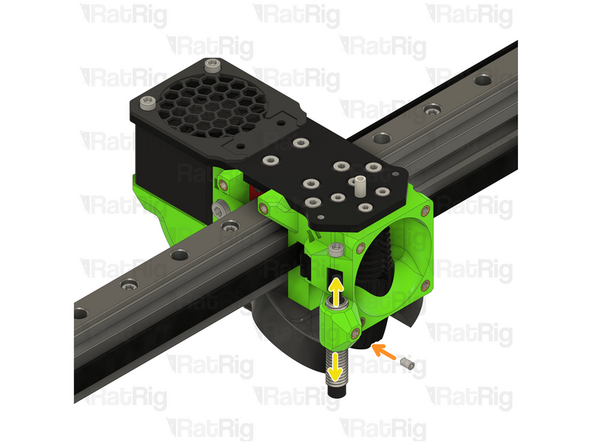

The Rat Rig SuperPinda Probe needs to be at the correct height to trigger properly

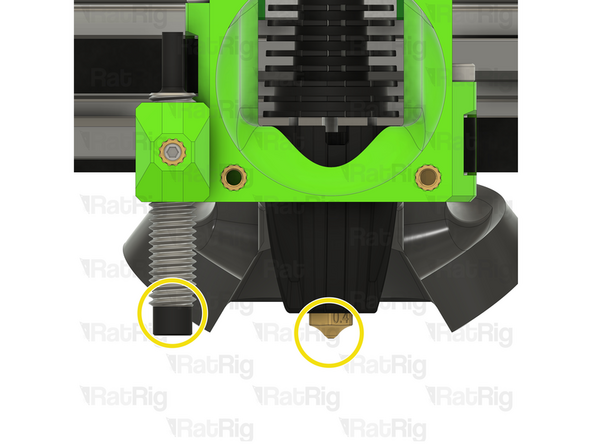

A recommended method to set the correct height is to rest the hot end nozzle on the bed, and then place a cable tie between the bed and the tip of the probe

Adjust the probe up to down as necessary to position the tip 1mm higher than the hot end nozzle

M3x5 Set Screw

Tighten the M3x5 set screw to secure the probe in place

Do not over-tighten the M3x5 set screw, doing so can damage the probe or printed probe mount

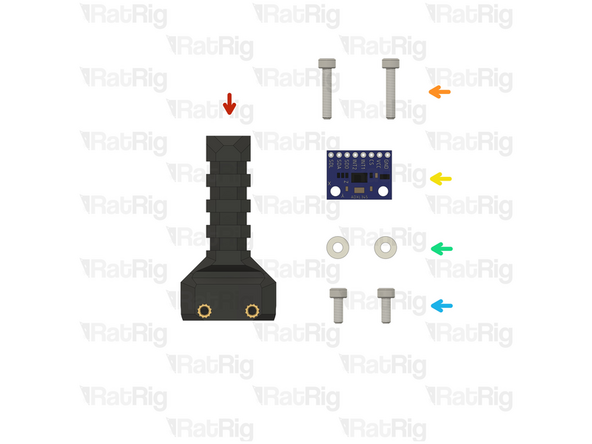

Skip to Step 59 if you are using a toolboard setup

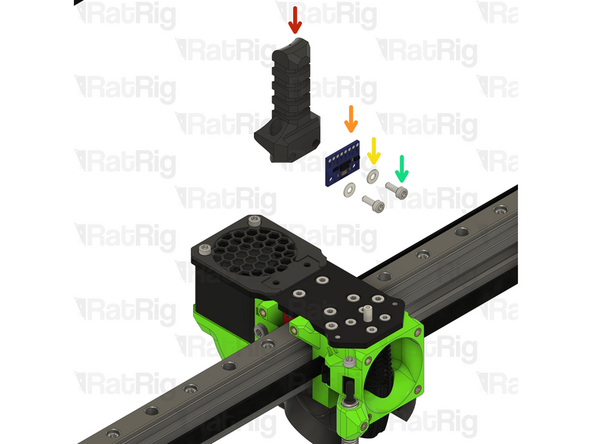

Rat Rig toolhead umbilical assembly

2x M3x16 Cap Head Screws

ADXL 345 Accelerometer

2x M3 Nylon washer

2x M3x8 Cap Head Screw

Rat Rig toolhead umbilical assembly

ADXL 345 Accelerometer

2x M3 nylon washer

2x M3x8 Cap Head Screw

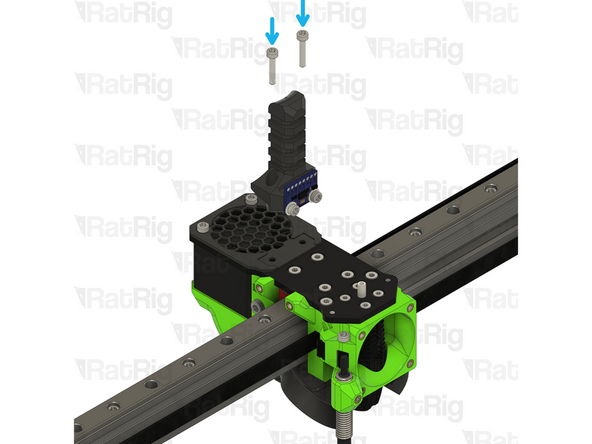

Mount the ADXL 345 to the umbilical assembly

Take care not to over tighten the M3x8 screws as you can damage the printed parts

2x M3x16 Cap Head Screw

Take care not to over tighten the M3x16 screws as you can damage the printed parts

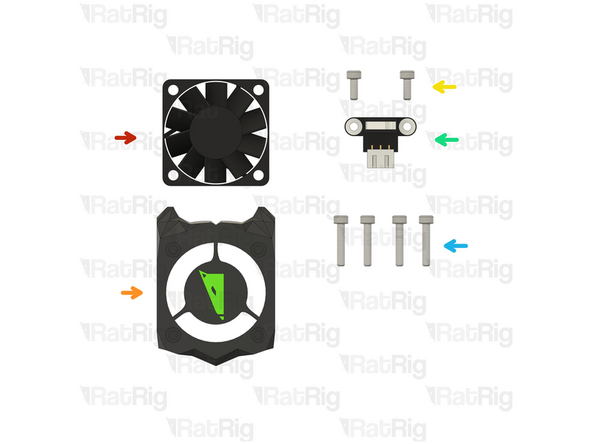

1x 40x10mm 24V Axial Fan

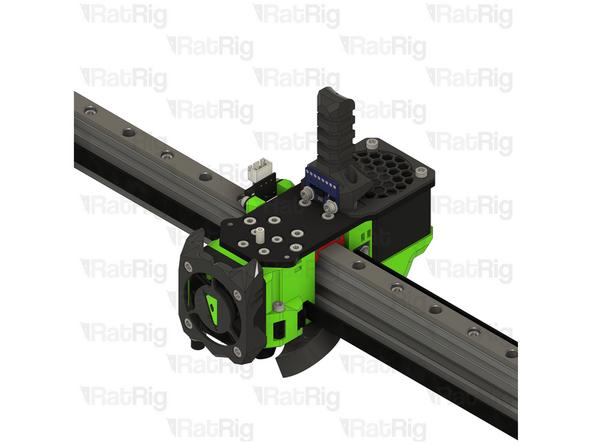

1x Rat Rig toolhead_shourd printed part

2x M3x8 Cap Head Screw

1x X Endstop

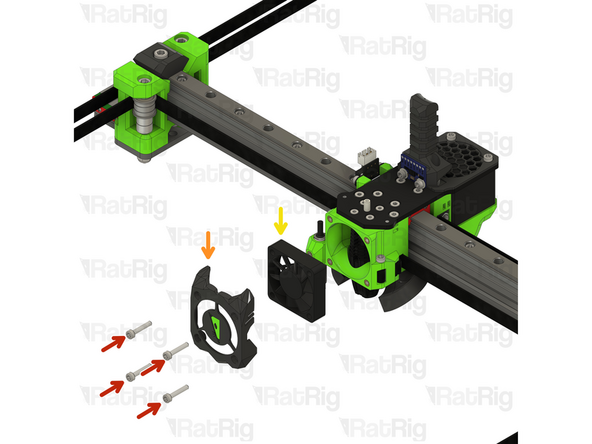

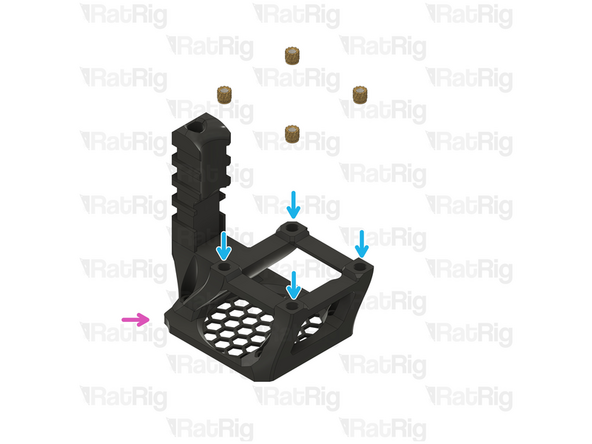

4x M3x16 Cap Head Screw

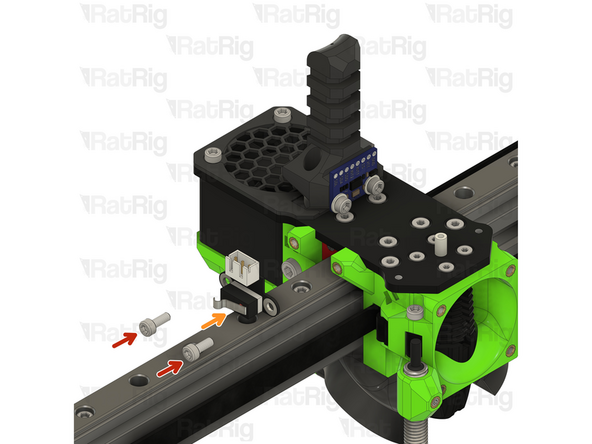

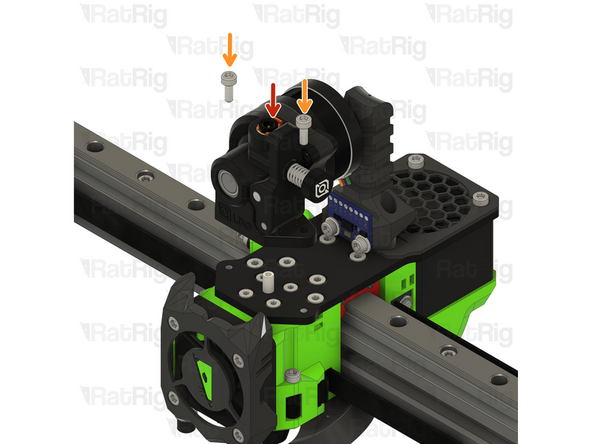

2x M3x8 Cap Head Screw

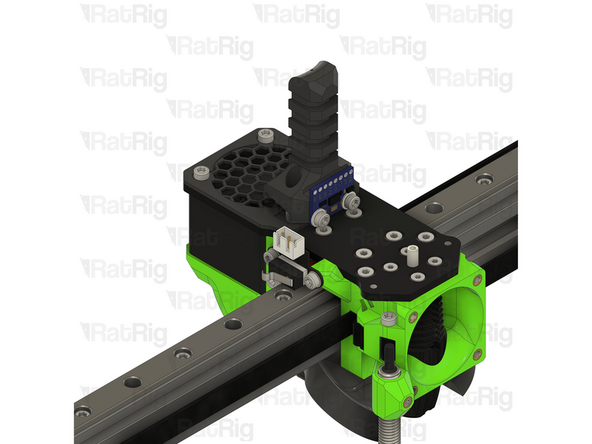

X Endstop

Tighten the M3x8 screws to secure the X endstop to the toolhead.

Take care not to over tighten the M3x8 screws as you can damage the printed parts

4x M3x16 Cap Head Screw

rr_toolhead_vc3_shroud printed part

40x10mm 24V Axial Fan

Insert the M3x16 screws into the Rat Rig toolhead shroud printed part, through the 40mm fan, and fasten them into the Rat Rig toolhead front

1x LDO Orbiter V2

2x M3x8 Cap Head Screw

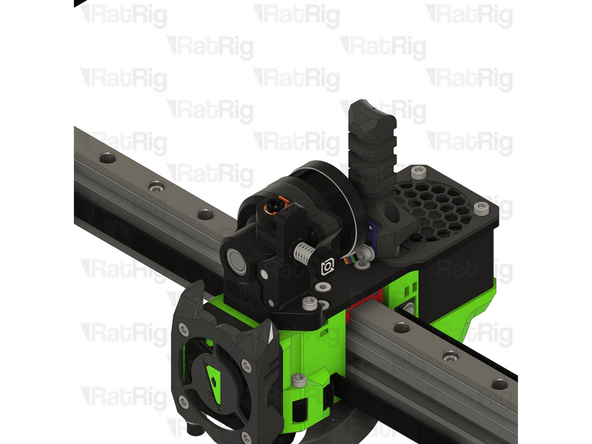

Insert the M3x8 screws into the LDO Orbiter V2 and fasten them to the Rat Rig toolhead plate.

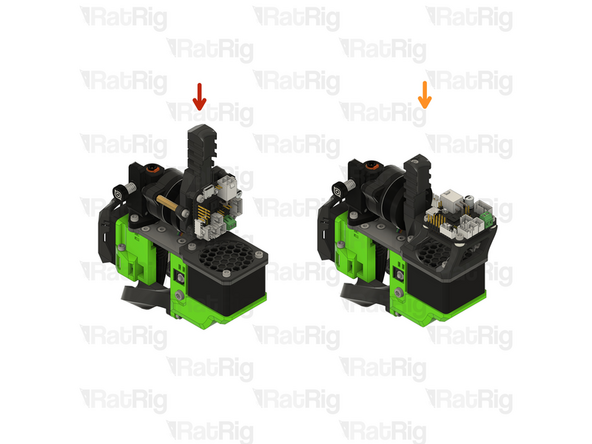

The Rat Rig Toolhead Beta 2 supports 2 variations for toolboard mounting:

Rat Rig kits do not include the necessary hardware for this setup; these components must be sourced separately

Vertical toolboard mount

Horizontal toolboard mount

This option requires a 90º usb-c cable

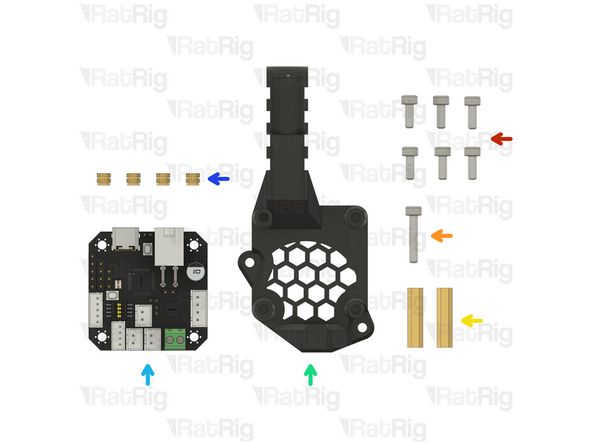

6x M3x8 Cap Head Screw

1x M3x16 Cap Head Screw

2x Hex standoff brass M3x20x4.5

rr_toolhead_vc3_ebb42_vertical printed part

BIGTREETECH EBB42 USB/CAN TOOLBOARD V1.2

4x Heat insert M3

This printed part has sacrificial layers which need to be removed prior to assembly.It is recommended to remove them by using a screwdriver, a hex key, or a drill, to push through the layers. This clears the holes for the screws to thread in to the head inserts

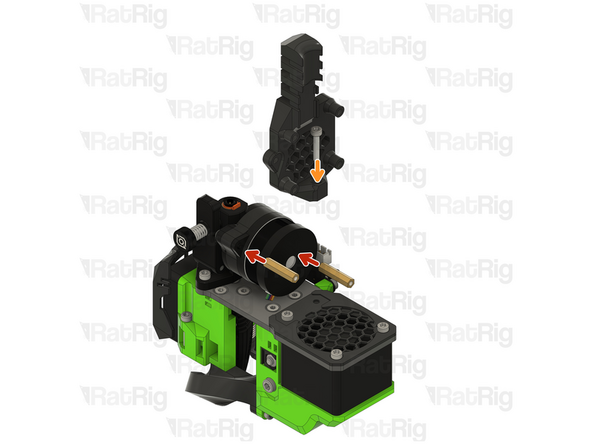

Thread the hex standoffs on to the LDO Orbiter V2 screws.

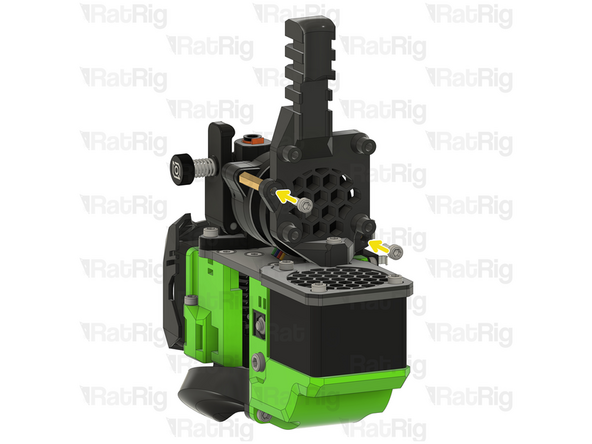

Do not overtighten the hex standoffs. They are brass and it is possible to strip the threads.

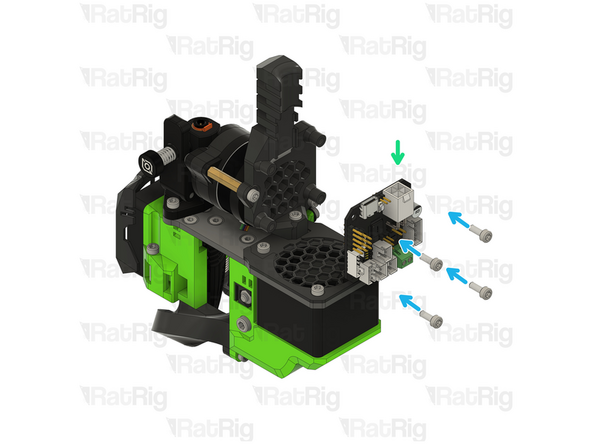

Insert the M3x16 Cap Head Screw in to the rr_toolhead_vc3_ebb42_vertical printed part and thread it on the toolhead.

Take care not to over tighten the M3x16 screws as you can damage the printed parts

2x M3x8 Cap Head Screw

Insert the M3x8 Cap Head Screws in to the printed part and thread them to the hex standoffs

BIGTREETECH EBB42 USB/CAN TOOLBOARD V1.2

Insert the M3x16 Cap Head Screws into the toolboard and thread them into the vertical toolboard mount

2x M3x40 Cap Head Screw

2x M3x16 Cap Head Screw

4x M3x8 Cap Head Screw

4x M3 Nylon spacer 3mm

4x Heat insert M3

1x M3x50 cap Head Screw

1x rr_toolhead_vc3_ebb42_horizontal printed part

BIGTREETECH EBB42 USB/CAN TOOLBOARD V1.2

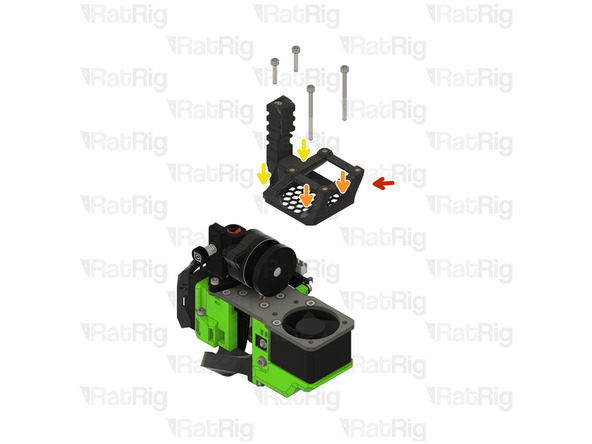

Horizontal toolboard mount assembly from the previous step

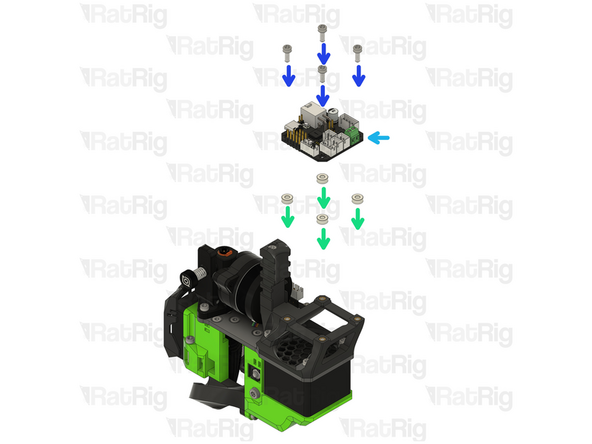

2x M3x40 Cap Head Screw

Insert the M3x40 screws through the toolboard mount, plate, 4028 cooling fan, and secure them to the toolhead

2x M3x16 Cap Head Screw

4x M3 Nylon spacer 3mm

BIGTREETECH EBB42 USB/CAN TOOLBOARD V1.2

4x M3x8 Cap Head Screw

Take care not to over tighten the M3x8 screws as you can damage the printed parts and the toolboard itself.

Your V-Core 3.1 is now upgraded with the Rat Rig Toolhead BETA2 and it's ready to melt some filament!

A new toolhead is a big change for any 3D printer, make sure to follow the commissioning guide to properly tune it.
