  1. Repeat this step for all Double L Brackets included in your kit (number varies depending on your machine size) Cap Head Screw M5x8mm
    • Repeat this step for all Double L Brackets included in your kit (number varies depending on your machine size)

    • Cap Head Screw M5x8mm

    • Double L Bracket

    • Flat T-Nut M5

    • Set T-Nuts in position, but don't tighten them just yet.

  2. All the profiles you have left by now are meant to be used as Spoiler Board Supports. The specific number of profiles will depend on the size of your machine.
    • All the profiles you have left by now are meant to be used as Spoiler Board Supports. The specific number of profiles will depend on the size of your machine.

    • Insert the T-Nuts mounted on the Double L Brackets inside the slots of the 2040 profiles. Make sure that the face of the L brackets is perfectly flush with the end of the profiles and tighten down the screws to lock the brackets in place.

    • Note that the 2 outer profiles use 2 Double L Brackets, while the remainder inner profiles use 4.

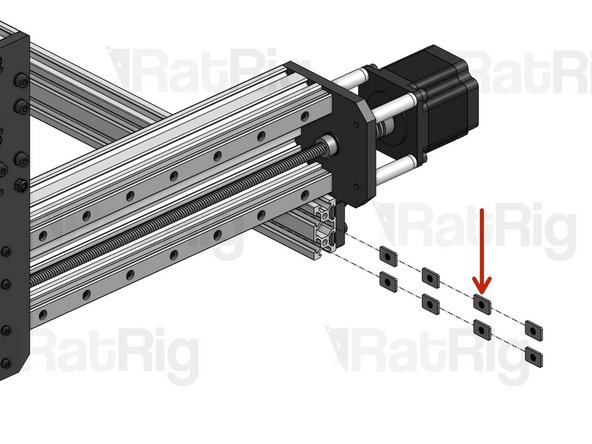

  3. For the next step, you will need to insert Flat T-Nuts inside the slots of both the front and rear 2040 profiles on your machine. You will need 2 T-Nuts per Double L Bracket.
    • For the next step, you will need to insert Flat T-Nuts inside the slots of both the front and rear 2040 profiles on your machine. You will need 2 T-Nuts per Double L Bracket.

    • Take note of the orientation of the T-Nuts (flat side facing outwards).

  4. Position the outer profiles so they are aligned with the end of the Angle Corners. Position the inner profiles so they are roughly equidistant from each other.
    • Position the outer profiles so they are aligned with the end of the Angle Corners. Position the inner profiles so they are roughly equidistant from each other.

    • Slide the T-Nuts inserted in the previous step behind the holes on the Double L Brackets

    • Attach the profiles with Cap Head Screws M5x8mm.

  5. Move on to the Drag chain assembly.
