Be careful when dealing with the magnets. If you are not careful and those snap back together, you'll most likely end up with a broken magnet.
-
-
-
Most of the steps repeat for all of the arms, others are repeated for the front arms and there's a special step for the back arm
-
Fit the magnets in the bed arms and drop the Countersink Screws M3x20 through the magnets and printed parts
-
Fasten the magnets by attaching 2x M3 hex nuts from the bottom of each arm
-
-
-

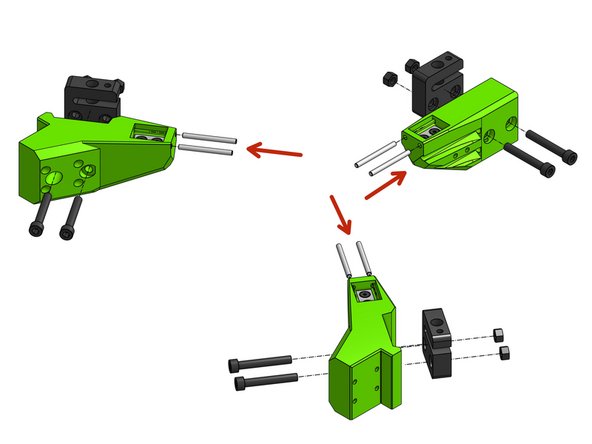

Each bed_arm takes 2 3mm x 35mm dowels. Gently press or twist the dowels into the holes.
-

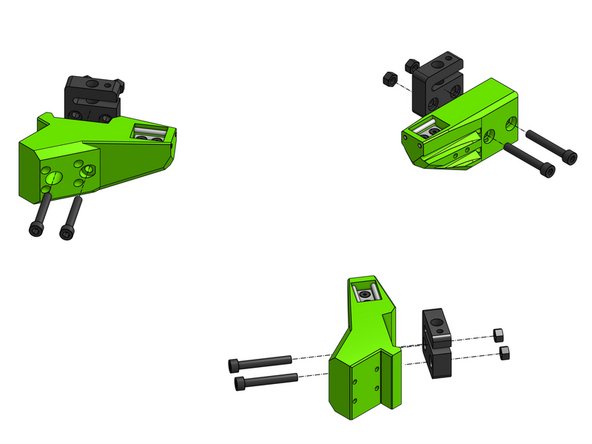

Be careful not to crack the part!
-

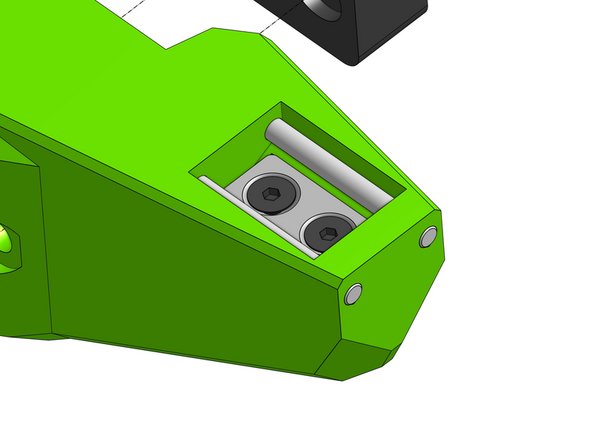

There are many easy ways to do this safely - using force is not one of them. "Screwing" those in as one would a screw is a good practice, you can even use a drill on low RPM to push them in.
-
-
-

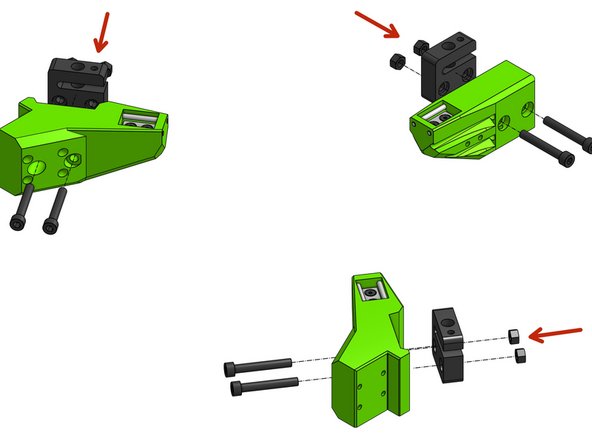

Put the M5 hex nuts into the blocks
-

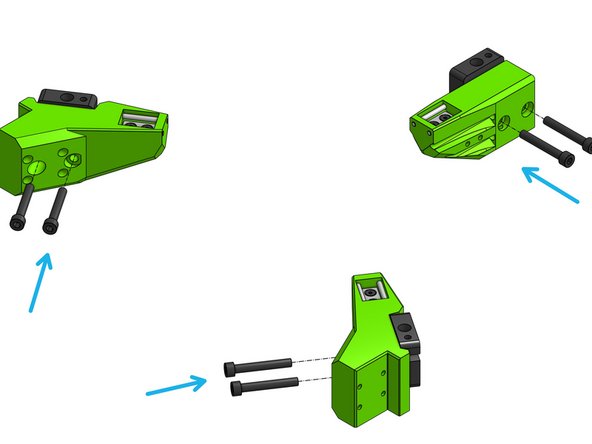

Fasten the blocks by threading Cap Head Screws M5x35 through the plastic parts
-

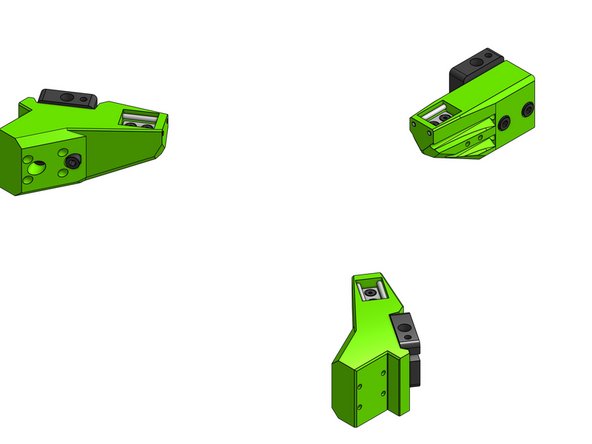

Make sure those are secure and not moving but ensure there is no pressure from the screw tension on the blocks - those are made of a soft plastic, that when squished will bind the lead screw
-
-
-
Thread each arm on its respective lead screw (loosening the lead screw in it's coupler might help here)
-

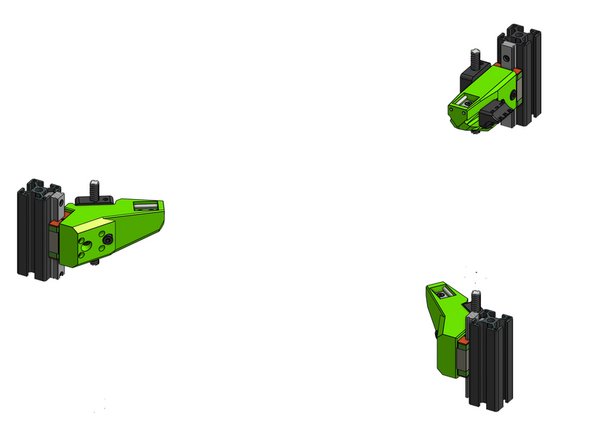

Attach the arms to the MGN carriages with 4x Cap Head Screws M3x20 for each arm
-
-
-

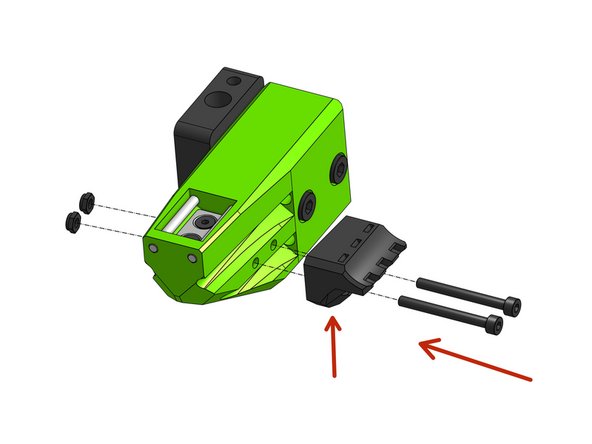

Thread the Cap Head Screws M3x30 through the bed_cable_relef part and attach it to the arm part
-

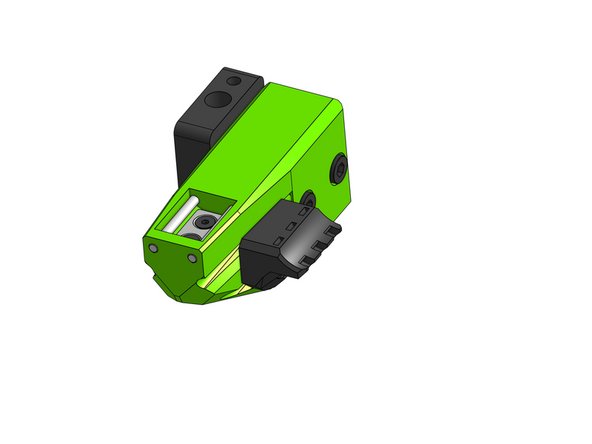

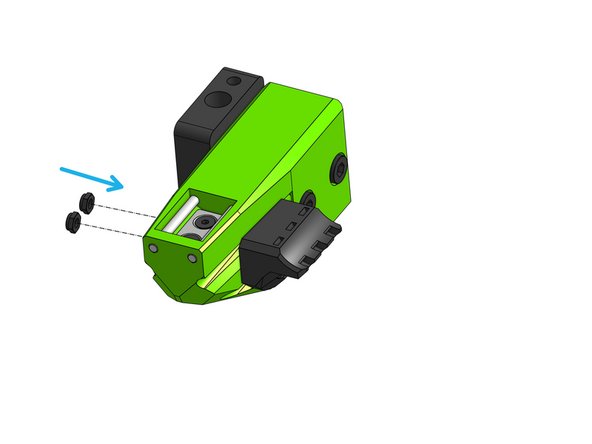

Insert the M3 hex nuts in the slots on the other side and pull them in by screwing in the screws - this will ensure those are aligned properly and not bind in the part.
-
-
-
The goal here is to ensure the lead screws are paralel to their rails. This step is very important to ensure proper print quality. The Z motor mounts were designed to allow some adjustment - we'll take advantage of that here
-

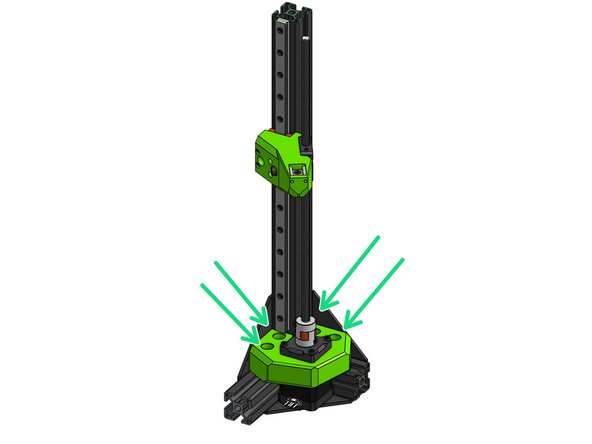

If needed loosen the 4 screws holding the front motor mounts and move the motor around to achieve proper lead screw alignment
-

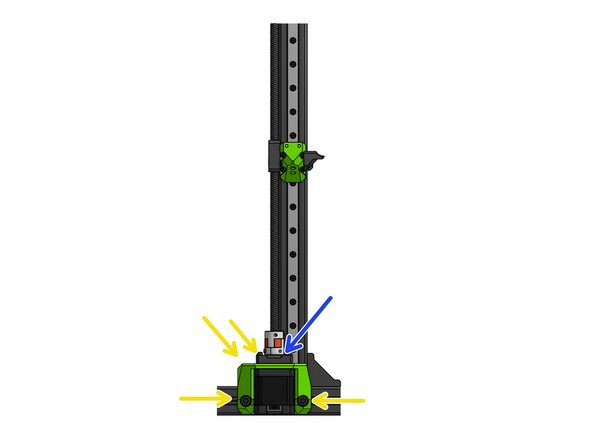

Proper alignment is when the arm does not bind in any point
-
Ensure the alignment of the back lead screw by allowing the mount to move in X with the M5 screws
-
Alignment in Y of the back lead can be achieved by loosening of the M3 screws holding the motor to the mount
-
If you did not already, at this point make sure to fasten all screws in the MGN rails
-
Please refer to the linear rail installation guide for instructions on the correct order to fasten the cap head screws
-
-
-
To prevent scratches, the bed plate is shipped with a protective film on both sides.
-
Gently peel off the protective film.
-

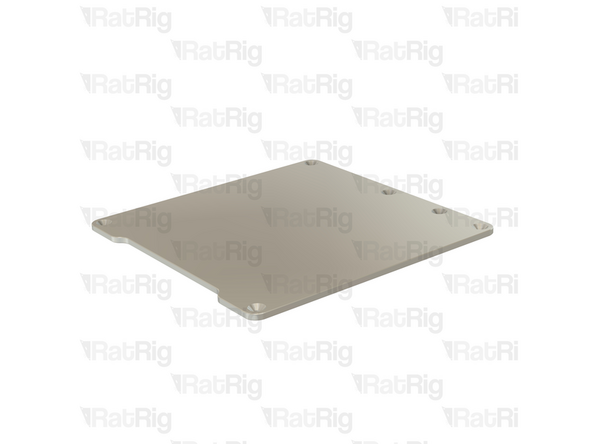

Repeat for the other side.
-
-
-

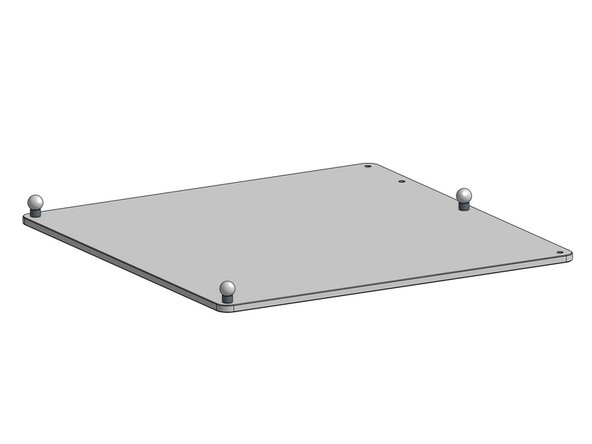

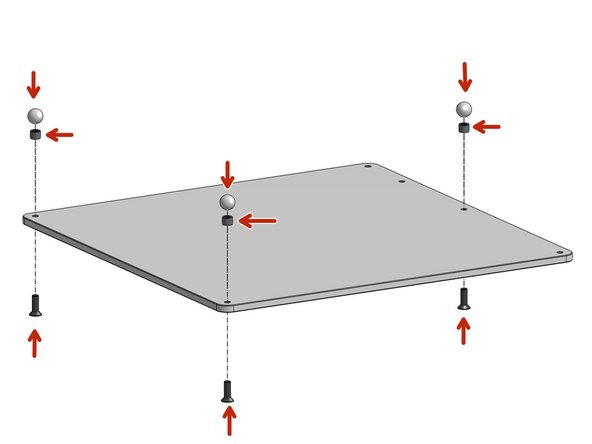

Attach the Countersink M5x16 screws to the 12mm balls through the 6mm spacers
-
-
-

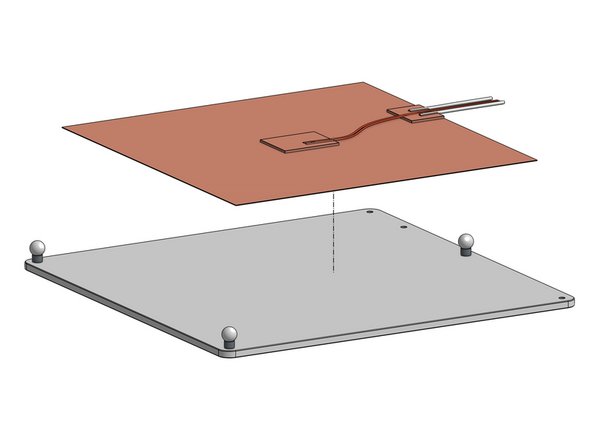

This is a mains voltage element, you should consult an electrician when dealing with it
-

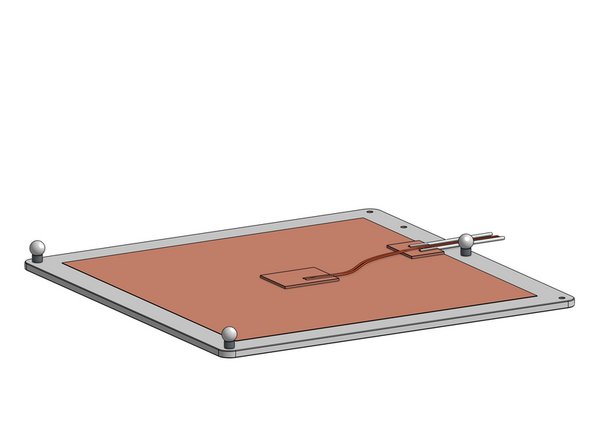

You may want to wipe the surface of the bed with >90% alcohol to make sure you are attaching to a clean surface
-

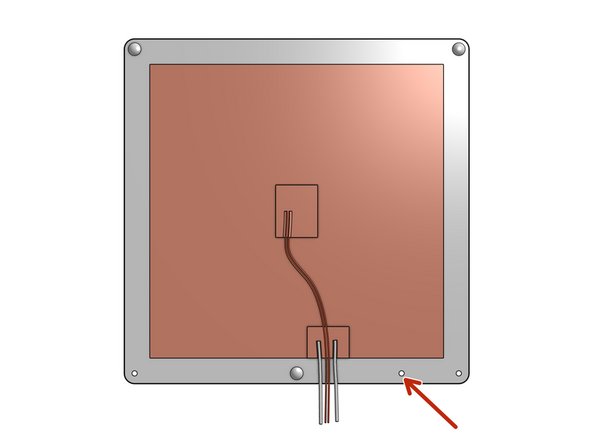

Peel off the sticker's protective layer from the pad and glue it to the bottom of the bed plate
-
The extra hole is there for a ground wire
-
-
-

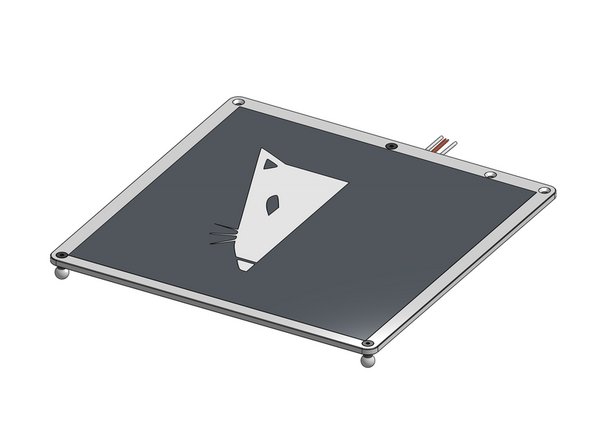

This step depends on the print surface type of your choosing but in general it's always a good idea to clean the surface from any dirt and grease
-
Attach the print surface
-
-
-

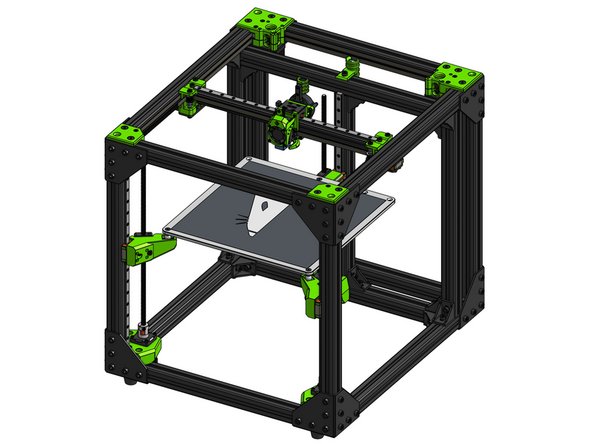

Place the assembled bed on the bed arms
-

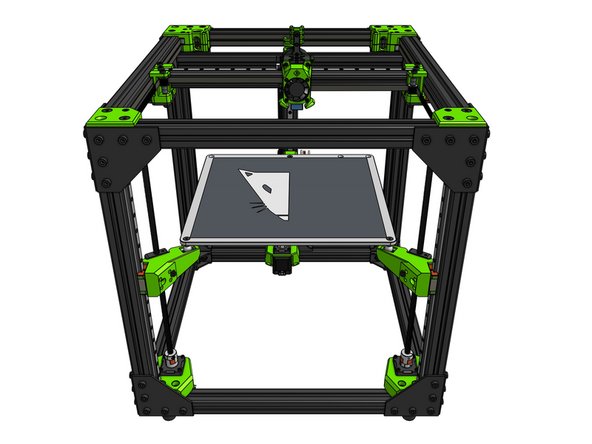

Secure the bed wires to the bed_cable_relief part with zip ties
-

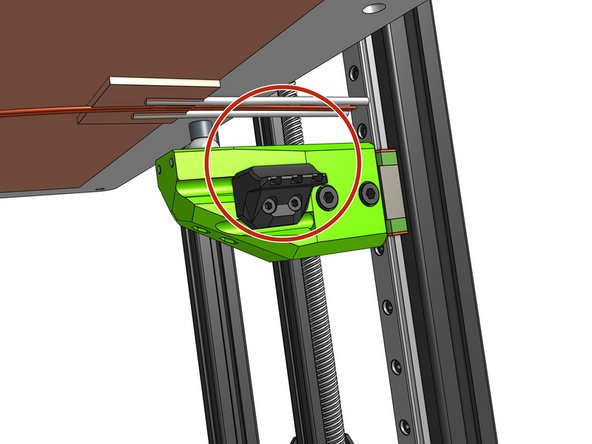

Those wires carry mains voltage, you should consult an electrician when handling them
-
