09. Drag Chain Assembly

Written By: Rat Rig
  • Comments: 1
  • Favorites: 0

Difficulty

Moderate

Steps

6

Time Required

Suggest a time??

Sections

1

Flags

0

  1. If your machine has the same length on X and Y, both drag chains on your wiring kit will have the same length. Otherwise, note that the drag chain for a specific axis will be around 200mm longer than that axis. M4 Hex Nut

    • If your machine has the same length on X and Y, both drag chains on your wiring kit will have the same length. Otherwise, note that the drag chain for a specific axis will be around 200mm longer than that axis.

    • M4 Hex Nut

    • Y Drag Chain Bottom Mount

    • Cap Head Screw M4x20mm

    • Y Drag Chain Top Mount

    • Cap Head Screw M4x25mm

    • Y Drag Chain

    Edit

  2. Cap Head Screw M4x8mm Drop-in T-Nut M4. Set into position, but don't tighten yet.

    • Cap Head Screw M4x8mm

    • Drop-in T-Nut M4. Set into position, but don't tighten yet.

    • Cap Head Screw M4x20mm

    • X Drag Chain Mount

    • M4 Hex Nut

    • X Drag Chain

    Edit
  3. Edit

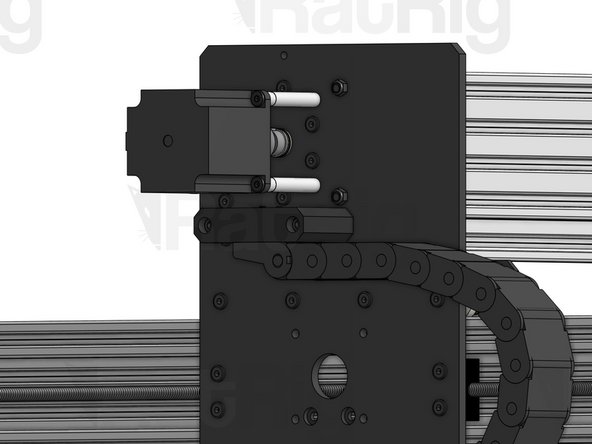

  4. Cap Head Screw M5x45mm Hex Locking Nut M5

    • Cap Head Screw M5x45mm

    • Hex Locking Nut M5

    Edit

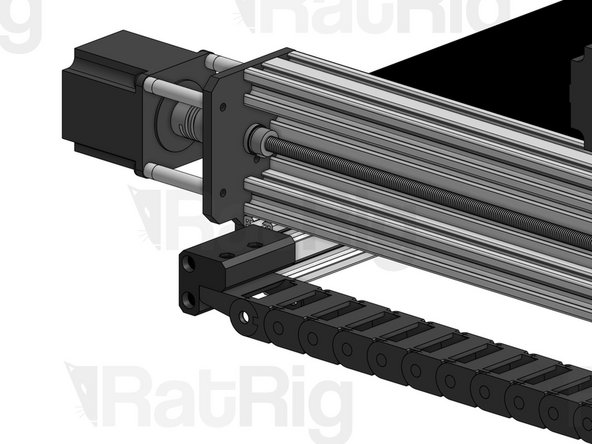

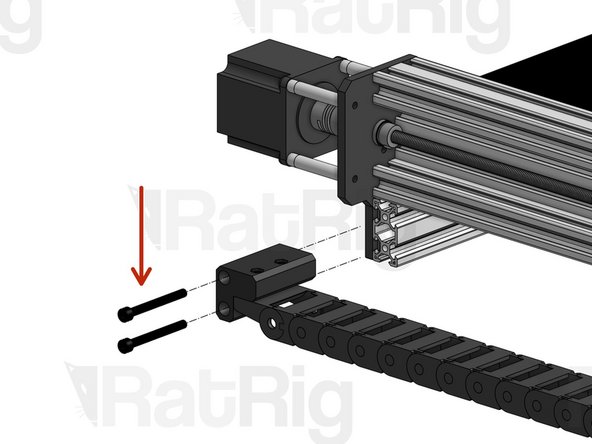

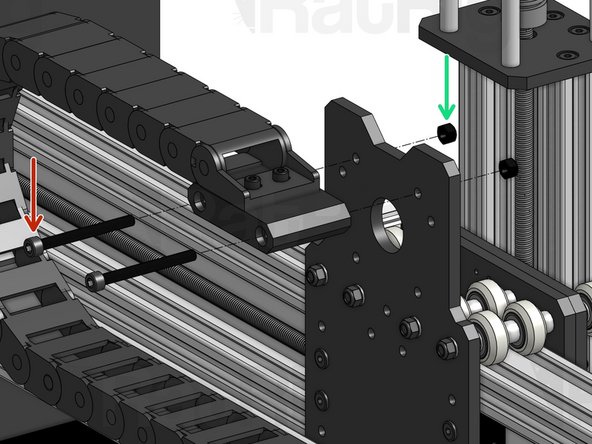

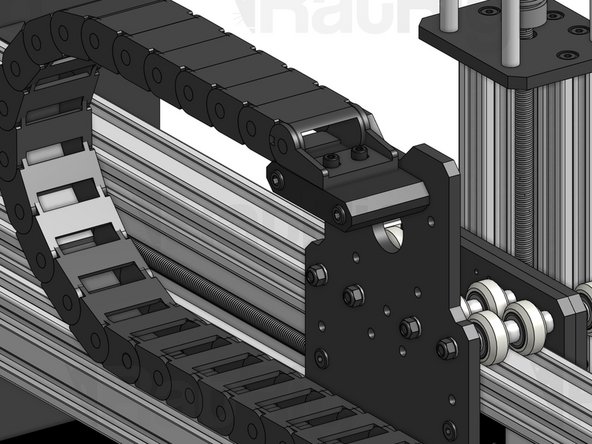

  5. Cap Head Screw M5x50mm Hex Locking Nut M5

    • Cap Head Screw M5x50mm

    • Hex Locking Nut M5

    Edit

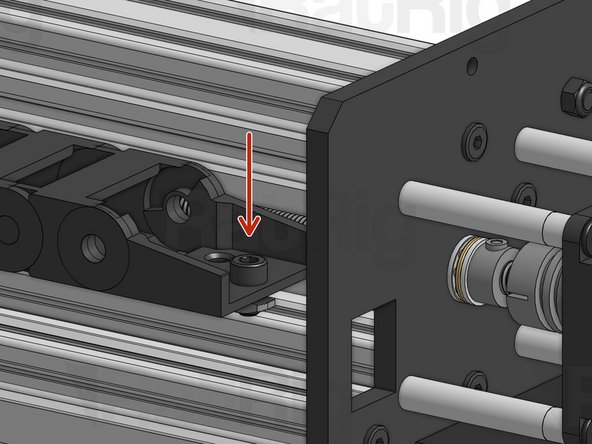

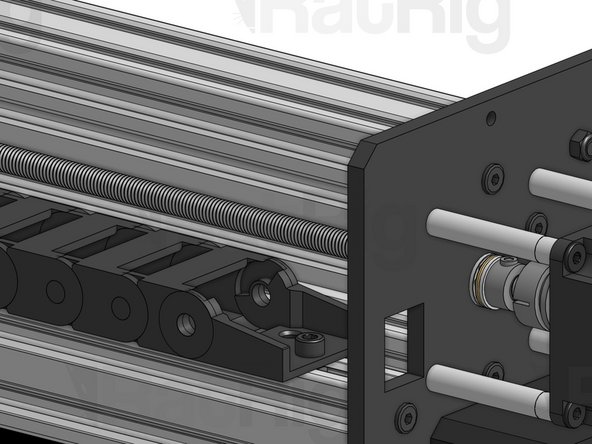

  6. Fit the Drop-in T-Nut mounted on the drag chain inside the 2040 slot and tighten the screw to lock it in place. Fit the Drop-in T-Nut mounted on the drag chain inside the 2040 slot and tighten the screw to lock it in place.

    • Fit the Drop-in T-Nut mounted on the drag chain inside the 2040 slot and tighten the screw to lock it in place.

    Edit
Finish Line
