2.8 Drag Chain Assembly

Written By: Rat Rig
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

0

  1. X Drag Chain. Will be roughly 200mm longer than your X Axis. Cap Head Screw M4x8mm

    • X Drag Chain. Will be roughly 200mm longer than your X Axis.

    • Cap Head Screw M4x8mm

    • Drop-in T-Nut M4. Screw into position, but don't tighten yet.

    • Cap Head Screw M4x25mm

    • Drag Chain Printed Part

    • Hex Locking Nut M4

    • Cap Head Screw M5x45mm

    Edit

  2. Y Drag Chain. Will be about 200mm longer than your Y axis. Hex Locking Nut M4

    • Y Drag Chain. Will be about 200mm longer than your Y axis.

    • Hex Locking Nut M4

    • Drop-in T-Nut M5. Screw them into position, but don't tighten yet.

    • Drag Chain Printed Part

    • Cap Head Screw M4x20mm

    • Cap Head Screw M5x45mm

    Edit

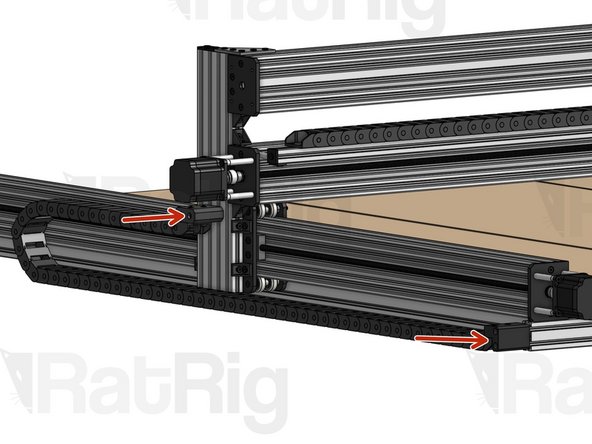

  3. Fit the Drop-in T-Nuts pre-mounted on the drag chain inside the 2020 profile slot and tighten the screws.

    • Fit the Drop-in T-Nuts pre-mounted on the drag chain inside the 2020 profile slot and tighten the screws.

    Edit

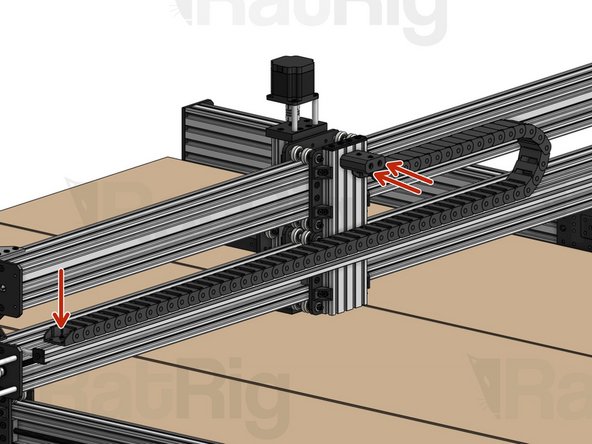

  4. Fit the Drop-in T-Nuts pre-mounted on the drag chain inside the 2020 profile slot and tighten the screws.

    • Fit the Drop-in T-Nuts pre-mounted on the drag chain inside the 2020 profile slot and tighten the screws.

    • Wiring Diagram

    Edit
